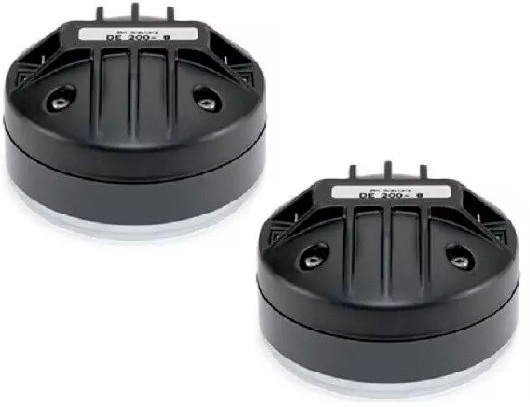

2x B&C DE200 1″ 8Ω, 100W continuous program power capacity, 106 dB sensitivity
2x B&C DE200 1″ 8Ω, 100W continuous program power capacity, 106 dB sensitivity
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Brand | B&C |
| Compatible Brand | Universal |
| Type | Titanium diaphragm |
| Model | B&C DE200 |
| MPN | DE200 |
2x B&C DE200 1" 8Ω, 100W continuous program power capacity, 106 dB sensitivity. Features100 W continuous program power capacity1" horn throat diameter44 mm (1.7 in) aluminium voice coilTitanium diaphragm1000 - 18000 Hz response106 dB sensitivitySpecificationsThroat Diameter - 25 mm (1 in)Nominal Impedance - 8 ΩMinimum Impedance - 7.5 ΩNominal Power Handling - 50 W (2 hour test made with continuous pink noise signal within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.)Continuous Power Handling - 100 W 9 (Power on Continuous Program is defined as 3 dB greater than the Nominal rating.)Sensitivity - 106 dB (Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.)Frequency Range - 1 kHz - 18 kHzRecommended Crossover - 1.6 kHz (12 dB/oct. or higher slope high-pass filter)Voice Coil Diameter - 44 mm (1.7 in)Winding Material - AluminiumInductance - 0.11 mHDiaphragm Material - TitaniumFlux Density - 1.5 TMax Frequency Range - 18 kHzMin Frequency Range - 1 kHzMounting and Shipping InfoOther details 3x M6 Mounting Studs with bolts and washers includedOverall Diameter - 102 mm (4 in)Depth - 61 mm (2.4 in)Net Weight - 1.75 kg (3.86 lb)Shipping Units - 1 pcsShipping Weight - 1.78 kg (3.92 lb)Shipping Box - 105x105x65 mm (4.13x4.13x2.56 in)
