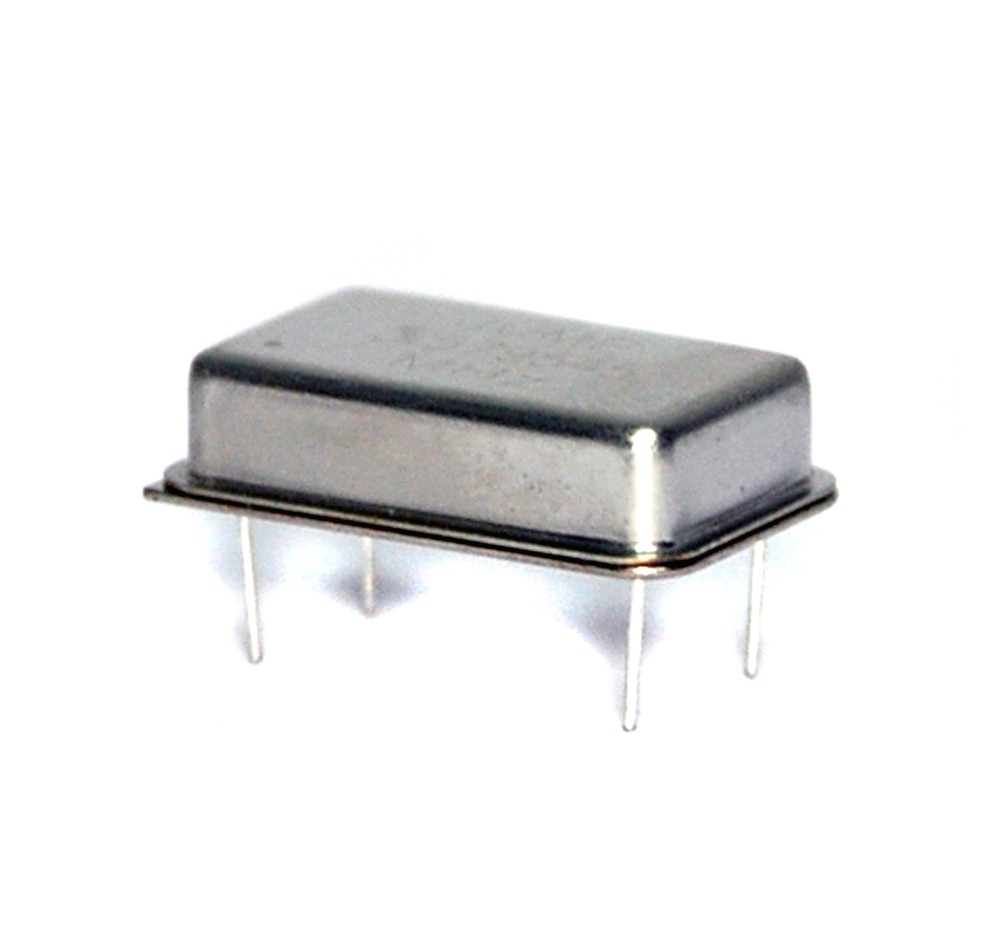

5pc Full size ( DIP 14pin package ) Crystal Oscillator 10.000MHz 5V 4pin 10MHz
5pc Full size ( DIP 14pin package ) Crystal Oscillator 10.000MHz 5V 4pin 10MHz
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | 10.000MHz 5V 4P |
| Country/Region Of Manufacture | Taiwan |
| Compatible Brand | Universal |
| Suited For | Crystal Oscillator |
| Type | Crystal Oscillator |
| Compatible Model | Crystal Oscillator |
| Features | Crystal Oscillator |
| MPN | 10.000MHz 5V 4P |
| Brand | TMJ or equal |
Crystal Oscillator Full size ( Dip14pin package ), 4pin 10.000MHz Vdd : +5V 30mA std. P1=Tri-state enable=NC or V+, P7=Gnd, P8=out, P14=+Vcc Frequency Stability : +/-100ppm Aging : +/-5ppm/year Operating temperature : 0~70℃ Load : 1~10 TTL/CMOS, 15~30pf Output Symmetry : 40 / 60%, (on/off %) Square wave Dimension: 20.4x12.9x5.3mm, LxWxH TMJ or equal Each order lot is for 5 pcsNet weight approx : 20g, 5pcsLT*N16x5x1.05 0.625 30 20240717+(20+20)g+10g+L1+Chiang General Guide about shippingCombine shipping with other items to reduce shipping cost are welcome, and please waiting my new invoice, do not direct paying by eBay auto-checkout, because it is usually incorrect. Will ship worldwide by post “Airmail registered small package without insurance”,The delivery is usually 2 weeks, but no warranty about delay, depends on the post.If you need the fastest delivery, take EMS please, but more expensive.If you need insurance, email me before paying, please.If items total price is over US$60, please consider to do insurance for them.I am notifying you, because this is a registered package, so, please arrange to have someone at home to sign for the delivery. If you have problem, email me before shipping please, I will change to regular airmail without registered, but the lost package risk is so high, and I can not response for it.Note : How do calculate the combine shipping ?I will check the package weight if over 760g, if over, then will auto change to post “Airmail parcel with or without insurance”, to save your money.For any under 760g package, and all items price under $60 , then will ship by post “Airmail registered small package without insurance”, and calculating by below steps :(1). Basic price=choice first lot the highest shipping price from all items.(2). Plus other items their additional lot shipping price. For example 1 :If you buy some item, and order 4 lots.the shipping price listing on eBay are: $6(first), $1(each additional).So the total combine shipping price = $6+$1x3= $9 .For example 2 :you buy 3 different items, and each item all is 1 lot, and each shipping price listing on eBay :Item1=$6(first), $1(additional, second lot), Item2=$7, $2, Item3=$8, $3.So the total combine shipping cost=$8(Item 3)+$1(item 1)+$2(Item 2) = $11 .For example 3 :you buy 3 different items, and Item 1=3 lots, Item 2=2 lots, Item 3=2 lots,and each shipping price listing on eBay :Item1=$6(first), $1(additional, second lot), Item2=$7, $2, Item3=$8, $3 .So the total combine shipping price =$8(Item 3)+$3(Item 3)+$1x3(Item 1)+$2x2(Item 2) = $18 .Hope you can understand. You can calculate by yourself or asking me a combine shipping price quotation before order, or directing order and sending combine shipping asking through eBay auto-checkout program, I will sent a new and correct invoice to you. About the import duties/fee, taxes:Anyway, the Import duties, taxes and charges are not included in the item price or shipping charges.These charges are the buyer’s responsibility.Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Thanks for you looking.
