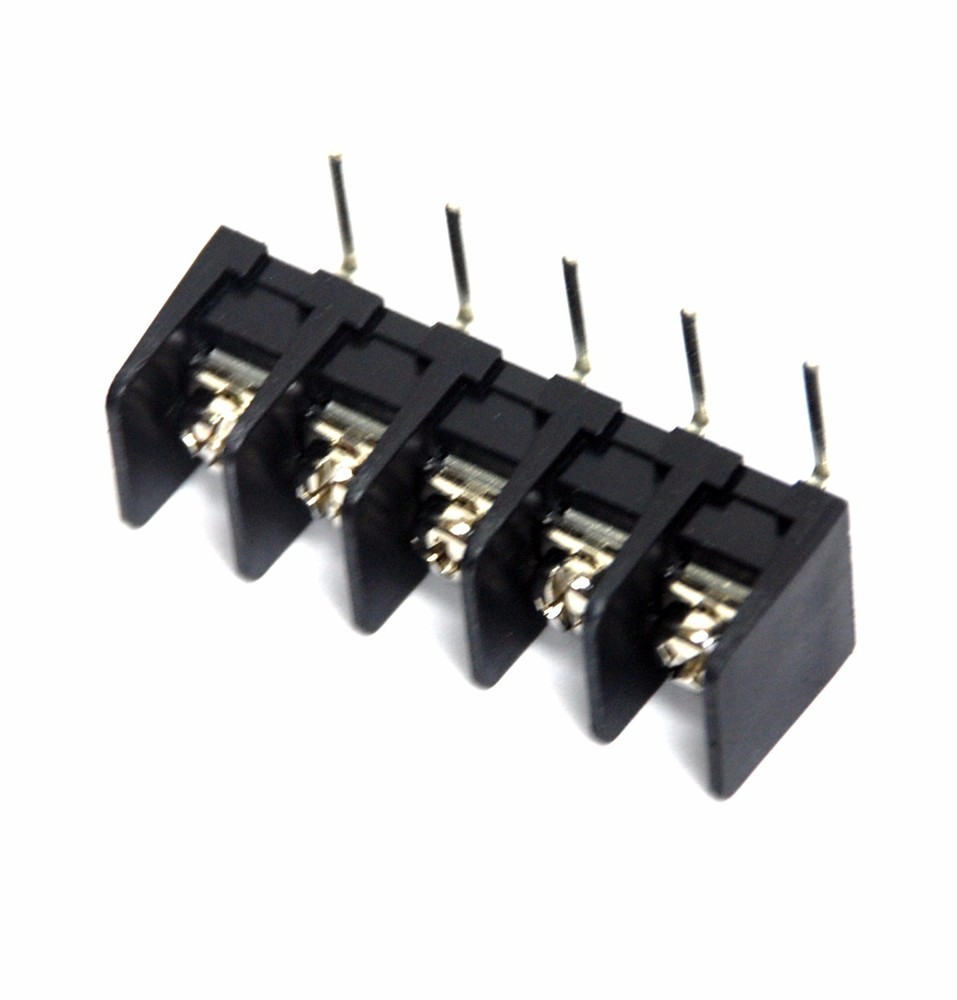

5pc PCB Barrier Terminal Block T34-BO14-05 5P 0.374″ 9.5mm 20A 300V UL DECA
5pc PCB Barrier Terminal Block T34-BO14-05 5P 0.374″ 9.5mm 20A 300V UL DECA
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | T34-BO14-05 5P |
| Country/Region Of Manufacture | Taiwan |
| Compatible Brand | Universal |
| Suited For | Terminal Block |
| Type | Terminal Block |
| Compatible Model | Terminal Block |
| Features | Terminal Block |
| MPN | T34-BO14-05 5P |
| Brand | DECA |
Note : Before making order, please checking to item# 133803176636 ,the newly information about International shipping. Barrier PCB TERMINAL BLOCK Part No. : T34-BO14-05 5P 20A 300V Right angle PCB through Pins Housing material : PBT(UL94V-0), color=Black Terminal material : Brass, 0.8t, Tin plated Screw material : Steel, M3.5, Nickel plated Working temperature : -40~+120C Insulation withstand voltage : AC2000V, 1min Insulation resistance : >2000Mohm, 500VDC Wire range : 14~22AWG Pin Pitch =0.374" 9.5mm Solder Pin size : 13x1.5x0.8mm, LxWxT Out side dimension : 50.0x16.5x16.5mm, LxWxH UL Safety, RoHS DECA in TaiwanEach order lot is for 5 pcs Net weight approx : 95g, 5pcs N16x5x1.05 0.625 27 20230201+50g+20g+G0+Chiang General Guide about shipping Combine shipping with other items to reduce shipping cost are welcome, and please waiting my new invoice, do not direct paying by eBay auto-checkout, because it is usually uncorrected. Will ship worldwide by post “Airmail registered small package without insurance” The delivery is usually 2 weeks, but no warranty about delay, depends on the post. If you need the fastest delivery, take EMS please, but more expensive. If you need insurance, email me before paying, please. If items total price is over US$60, please consider to do insurance for them. I am notifying you, because this is a registered package, so, please arrange to have someone at home to sign for the delivery. If you have problem, email me before shipping please, I will change to regular airmail without registered, but the lost package risk is so high, and I can not response for it. Note : How do calculate the combine shipping ? I will check the package weight if over 760g, if over, then will auto change to post “Airmail parcel with or without insurance”, to save your money. For any under 760g package, and all items price under $60 , then will ship by post “Airmail registered small package without insurance”, and calculating by below steps : (1). Basic price=choice first lot the highest shipping price from all items. (2). Plus other items their additional lot shipping price. For example 1 : If you buy some item, and order 4 lots. the shipping cost listing on eBay are: $5.5(first), $0.75(each additional). So the total combine shipping cost=$5.5+$0.75x3= $7.75 . For example 2 : you buy 3 different items, and each item all is 1 lot, and each shipping cost listing on eBay : item1=$5.5(first), $0.75(additional, second lot), item2=$5.75, $1, item3=$8, $2. So the total combine shipping cost=$8(item 3)+$0.75(item 1)+$1(item 2) = $9.75 . For example 3 : you buy 3 different items, and item 1=3 lots, item 2=2 lots, item 3=2 lots, and each shipping cost listing on eBay : item1=$5.5(first), $0.75(additional, second lot), item2=$5.75, $1, item3=$8, $2. So the total combine shipping cost= $8(item 3)+$2(item 3)+$0.75x3(item 1)+$1x2(item 2) = $14.25 . Hope you can understand. You can calculate by yourself or ask me a combine shipping cost quotation before bidding, or directing order and wait a moment, I will sent a new and correct invoice to you. About the import duties/fee, taxes: Usually, will write only 1/2 actual value or less than $30 to your customs to avoid the possible import fee, for these “registered Airmail package”, and actual value less than $60 of order. Anyway, the Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Thanks for you looking.
