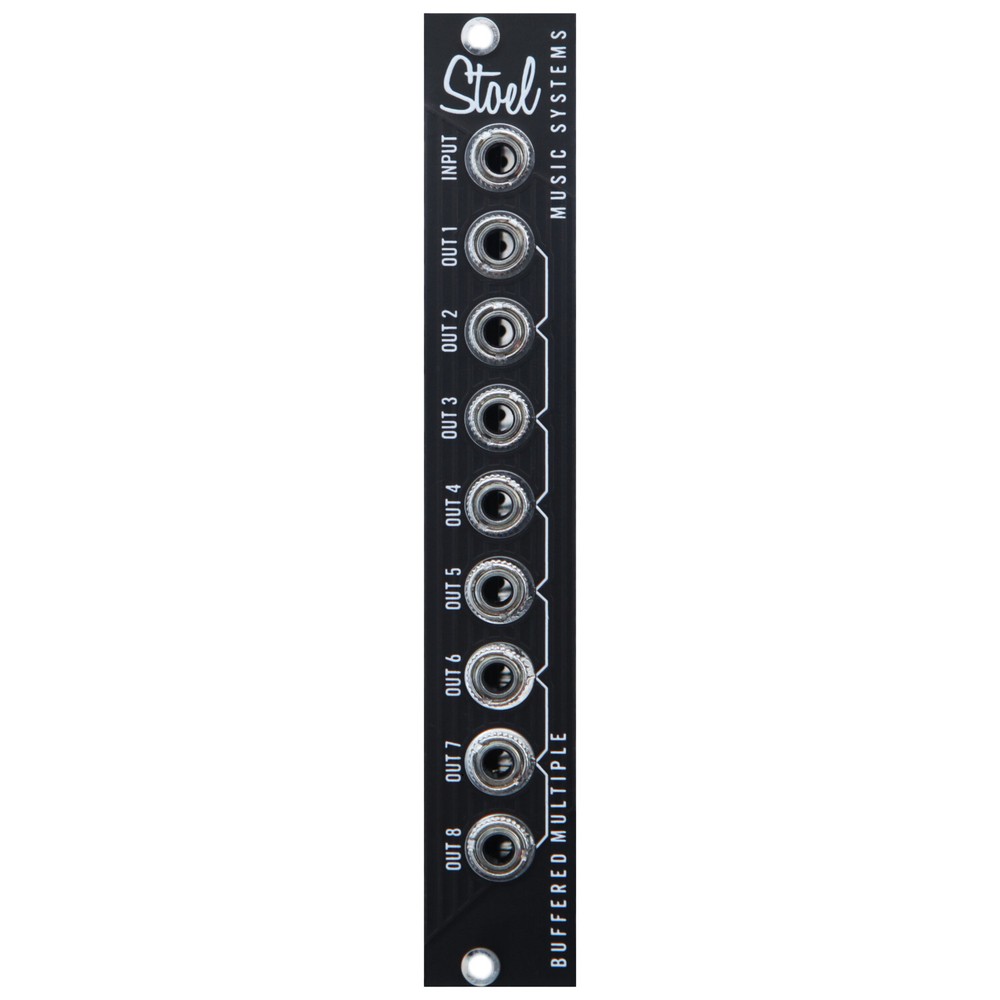

8 Out Buffered Multiple in Dark Mode Modular Eurorack by Stoel Music Systems
8 Out Buffered Multiple in Dark Mode Modular Eurorack by Stoel Music Systems
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Stoel Music Systems |
| -12V Draw | 14ma |
| Type | Modular Synthesizer |
| Mounting Depth | 25mm |
| Input/Output Ports | CV In |
| Analog/Digital | Analog |
| Model | Buffered Multiple |
| +5V Draw | 0ma |
| Features | Buffered Outs |
| MPN | EM1216 |
| +12V Draw | 14ma |
The Stoel Music Systems Buffered Multiple in Dark Mode provides precise distribution of control voltages to up to eight destinations. When splitting a control voltage, the voltage will often drop as it is divided to more destinations. This can be a significant problem, especially when controlling the pitch of oscillators. This module provides a separate unity gain buffer amplifier for each output, ensuring that splitting the signal will not affect the level. Both CV and audio signals can be distributed with this module. All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss white finish. For a crisp appearance and exceptional durability, the front panel markings are digitally printed at high-resolution with UV-cured ink. Mounting holes are plated to significantly reduce screw rash. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward. Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.
