Allen & Heath DX012 12 XLR Output Analog/AES Portable DX Expander
Allen & Heath DX012 12 XLR Output Analog/AES Portable DX Expander
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Allen & Heath |
| MPN | DX012 |
| Type | Signal Processors |

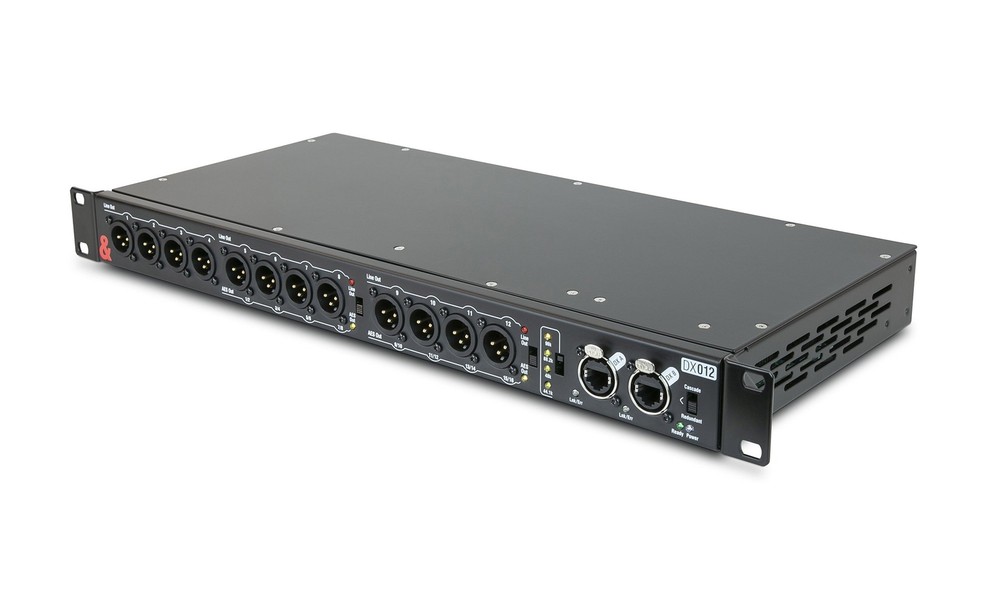

If you need to get more out of your system, just look to the Allen & Heath DX012. It's designed to provide remote output expansion for their SQ and dLive models. It's ideal for feeding IEM systems as well as amplifier racks, offering both analog and AES digital output options in a compact 1U package. Each unit provides 12 XLR outputs which can be configured in several ways:12 analog line outputs8 analog line outputs + 4 stereo AES outputs4 analog line outputs + 8 stereo AES outputs This useful input/output (I/O) device is connectable through a single Cat5e cable to the dLive Surface, dLive MixRack and SQ mixer, or upstream DX expander via a secure EtherCon port. A second locking EtherCon port is also included for redundant connection to other compatible hardware, or for daisy-chaining to a downstream DX expander for additional remote I/O.FeaturesCompatible with SQ and dLive systems12 XLR Outputs:1-4 Analog Line Out5-8 Analog Line out or AES Digital out (switchable)9-12 Analog Line out or AES Digital out (switchable)AES outputs globally switchable between:44.1 kHz48 kHz88.2 kHz96 kHzCascade mode allows daisy-chaining of 2 DX16/DX12 Expanders for additional I/ORedundant DX connection to compatible hardwareMultiple DX012 can be added to a system:Up to 16 DX012 units can be added to a SQ systemUp to 46 DX012 units can be added to a dLive S Class systemUp to 22 DX012 units can be added to a dLive C Class systemNote: additional DX012 sold separatelyRack-mounted (1U) or shelf/floor operationPlug and Play – no IP addressing requiredCompatible with CAT5e (or higher) cables of up to 100mLocking EtherCon portsSpecificationsNote: specifications and further information can be found within the items located under the "Documentation" tab above.
