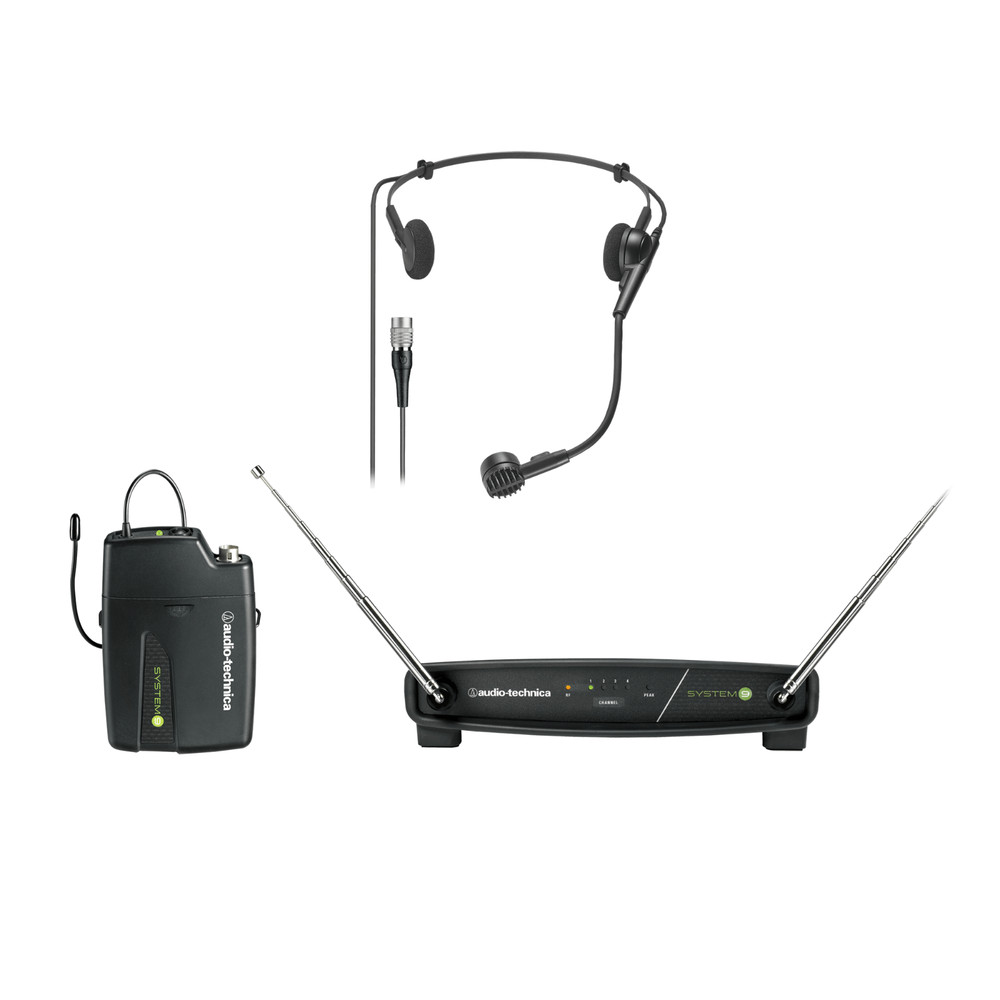

Audio Technica ATW-901A/H Receiver & Body pack Transmitter Wireless Headworn Mic

Specifications

All Returns Accepted	ReturnsNotAccepted
Brand	Audio-Technica
Form Factor	Headworn microphone
Connectivity	Wireless
MPN	ATW-901A/H
Transducer Type	Dynamic

Audio Technica ATW-901A/H Receiver & Body pack Transmitter Wireless Headworn Mic ATW-R900a receiver and ATW-T901a body-pack transmitter with PRO 8HEcW headworn microphone. Features:PRO8HE HEADSET WLS SYS 169.505169.505 to 171.905 MHzDipole Antenna for Extended RangeChannel, RF, and AF Peak Indicator LEDsBalanced XLR & Unbalanced 1/4" OutputsSquelch ControlVolume ControlCord Hook to Prevent Accidental Pull-OutChannel Selector SwitchesInstrument and Microphone Trim ControlProfessional Locking Bodypack ConnectorSpecifications:Overall SystemOperating Frequencies:VHF highband, 169 MHz to 172 MHzModulation Mode:FMMaximum Deviation:+/-10 kHzFrequency Response:80 Hz to 13 kHzOperating Range:200' (60 m) typicalOpen range environment with no interfering signalsTotal Harmonic Distortion:<1% (at 1 kHz, +/-10 kHz deviation)Operating Temperature Range:40° F (4° C) to 110° F (43° C)Battery performance may be reduced at very low temperaturesNotes:First-generation System 9 (original) components:ATW-R900 receiverATW-T901 body-pack transmitterATW-T902 unidirectional dynamic microphone transmitterClick here for the original System 9 Owner's Manual. Handheld TransmitterRF Power Output:10 mWSpurious Emissions:Following federal and national regulationsBattery Type:Two 1.5V AAnot includedBattery Life:8 hours (alkaline)Depending on battery type and use patternDimensions:9.91" (251.8 mm) long,2.11" (53.5 mm) diameterNet Weight:9.2 oz (260 grams)without batteriesAccessories Included:AT8456a Quiet-Flex™ stand clamp Body PackRF Power Output:10 mWBattery Life:8 hours (alkaline)Depending on battery type and use patternBattery Type:Two 1.5V AAnot includedDimensions:2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) DInput Connections:Four-pin Locking ConnectorPin 1: GNDPin 2: INST INPUTPin 3: MIC INPUTPin 4: DC BIAS +9VNet Weight:2.8 oz (80.0 grams)without batteriesSpurious Emissions:Following federal and national regulations ReceiverReceiving System:Non-diversity, single-channel, dual antenna systemImage Rejection:50 dB minimumRF Sensitivity:20 dBuV at 60 dB S/N ratio (50 ohms termination)Power Supply:100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supplyOperating Temperature Range:40° F (4° C) to 110° F (43° C)Dimensions:7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) DWeight:12.0 oz (337 grams)Accessories Included:Power supplyAudio Output:Nominal Output LevelXLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed & shipped USPS, UPS or Freight Service. Contact us & pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed & shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, & accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids

Audio Technica ATW-901A/H Receiver & Body pack Transmitter Wireless Headworn Mic

Specifications
