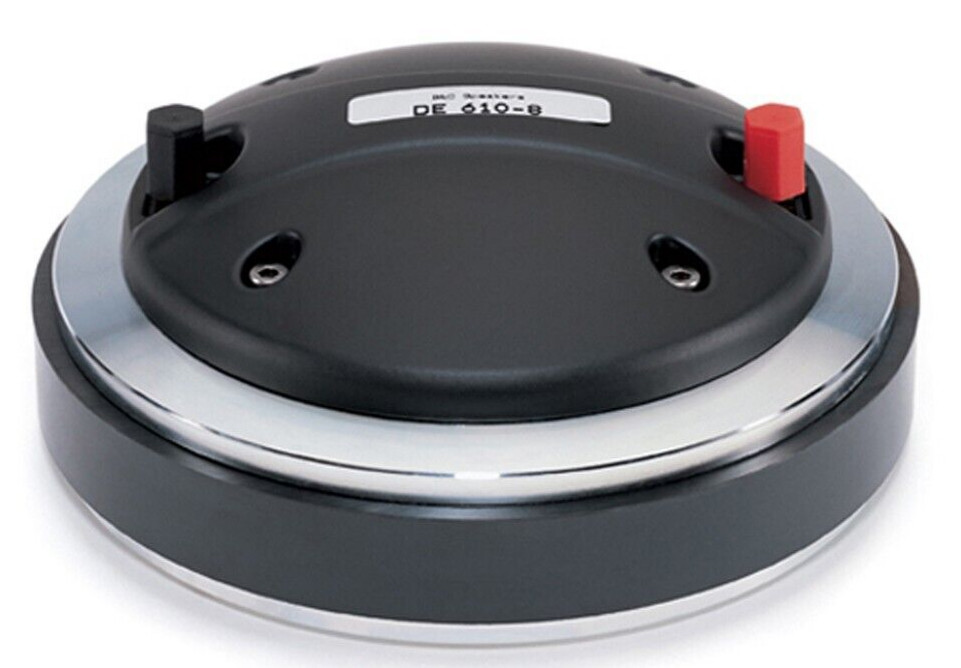

B&C DE610-8 160 W continuous program power capacity & 108 dB sensitivity
B&C DE610-8 160 W continuous program power capacity & 108 dB sensitivity
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | B&C Speakers |
| Compatible Brand | Universal |
| Type | Diaphragm Driver |
| Model | B&C DE610-8 |
| MPN | DE610-8 |
B&C DE610-8 160 W continuous program power capacity & 108 dB sensitivity Features 160 W continuous program power capacity1.4' horn throat diameter65 mm (2.5 in) aluminium voice coilTitanium diaphragm1000 - 18000 Hz response108 dB sensitivityShorting copper cap for extended HF responseSpecifications Throat Diameter: 36 mm (1.4 in)Nominal Impedance: 8 ΩMinimum Impedance: 7.6 ΩNominal Power Handling: 80 WContinuous Power Handling: 160 WSensitivity: 108 dBFrequency Range: 1 kHz - 18 kHz Recommended Crossover: 1.2 kHzVoice Coil Diameter: 65 mm (2.5 in)Winding Material: AluminiumInductance: 0.15 mHDiaphragm Material: TitaniumFlux Density: 1.75 TMax Frequency Range: 18 kHzMin Frequency Range: 1 kHz Mounting and Shipping Info Other details: 4x M6 Mounting Studs with bolts and washers included Overall Diameter: 156 mm (6.1 in)Depth: 65 mm (2.5 in)Net Weight: 3.8 kg (8.4 lb)Shipping Units: 1 pcsShipping Weight: 3.92 kg (8.64 lb)Shipping Box: 190x190x80 mm (7.48x7.48x3.15 in)
