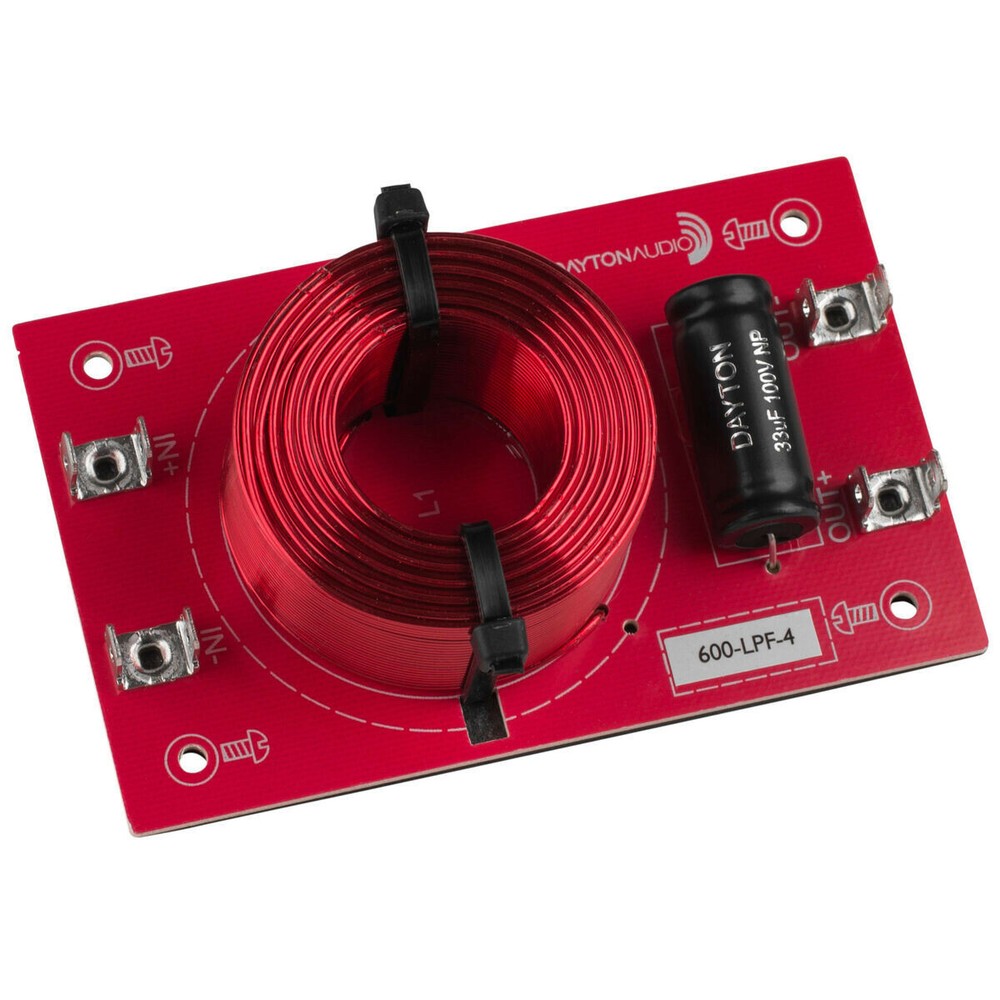

Dayton Audio – 600-LPF-4 – Low Pass Speaker Crossover 600 Hz 12 dB/Octave
Dayton Audio – 600-LPF-4 – Low Pass Speaker Crossover 600 Hz 12 dB/Octave
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | 600-LPF-4 |
| Compatible Model | Dayton Audio |
| Unit Type | Unit |
| Model | Dayton Audio 600-LPF-4 |
| Suited For | Speakers |
| Compatible Brand | Universal |
| Brand | Dayton Audio |
| Type | Speaker Crossover |
Brand NEW! Including 90 Days USA Factory Warranty. This 2nd order (i.e. 12 dB per octave) low pass Linkwitz-Riley filter from Dayton Audio passes frequencies below 600 Hz and can easily be combined with other filters in this series to create 2-way or even 3-way crossover networks. Designed for use with 4 ohm drivers. Key Features High quality air core inductors in series with the driver High quality components are securely fastened to PCB Frequencies can be staggered or overlapped for desired response High quality red PC board with EVA backing to prevent shorts and vibration Dual 0.205" terminals at each connection point for easy parallel wiring Dayton Audio's premium inline passive filters make it easy to limit a driver's frequency response to a specific desired bandwidth. By using combinations of these filters you can create complete 2-way or 3-way crossovers. The components used in each of these are the same high quality you have come to expect from Dayton Audio. This 12dB/octave 600 Hz low pass filter can be combined with our 600 Hz high pass for a 2nd order Linkwitz-Riley crossover, which sums for flat transfer function across the crossover frequency. In addition, you can stagger or overlap filter frequencies to overcome peaks and dips in individual drivers' frequency response to create crossovers that acoustically sum flat across the crossover point. Specifications: Type: Low Pass Filter Frequency: 600 Hz Impedance: 4 ohms Dimension: 4.13" x 2.55" (105 mm x 65 mm) Power handling: 250 watts Series inductor value: 2.1 mH Parallel capacitor value: 33 µF - All international buyers are responsible for all tax, duties and/or customs fees.
