Doepfer A-183-4 Quad Level Shifter Modular EURORACK – NEW – PERFECT CIRCUIT
Doepfer A-183-4 Quad Level Shifter Modular EURORACK – NEW – PERFECT CIRCUIT
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Doepfer |
| MPN | Does Not Apply |
| Type | Modular Synthesizer |

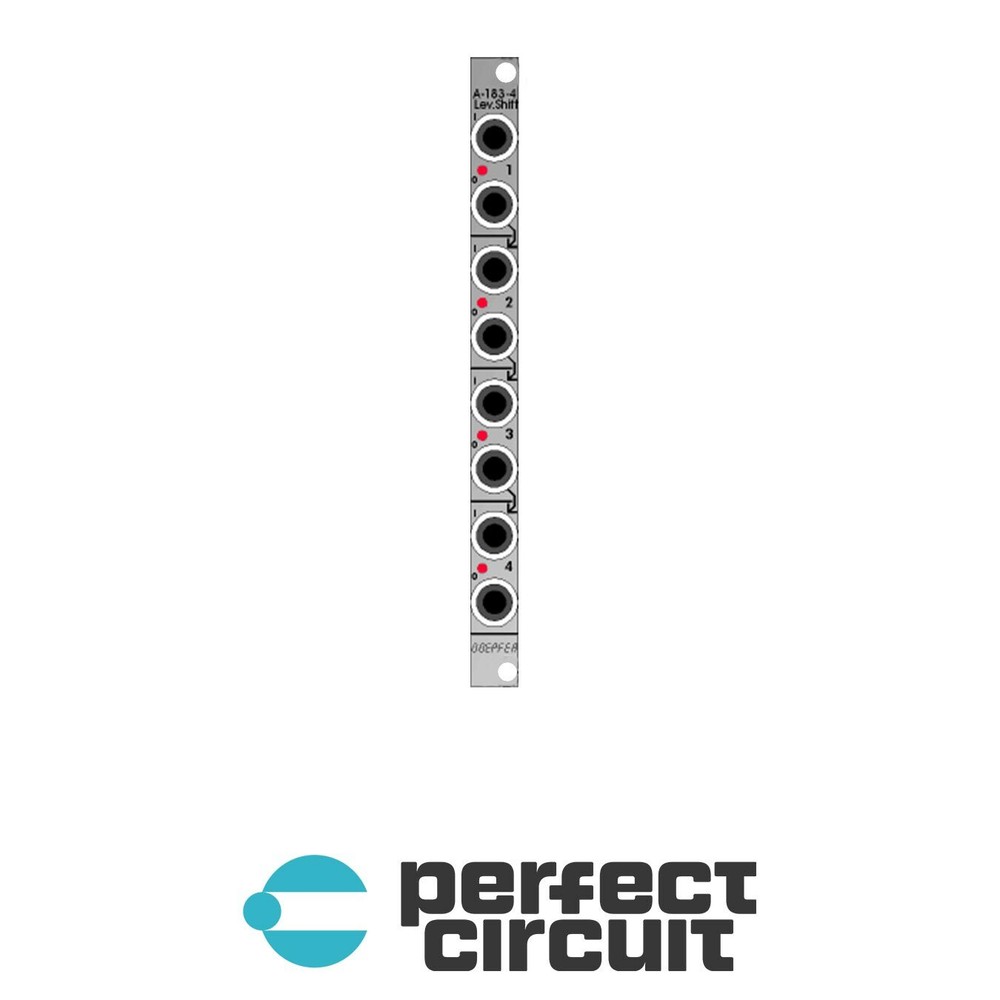

Synths. Pedals. DJ. Pro Audio. *FREE U.S. SHIPPING RISK-FREE RETURNS EXTENDED WARRANTY LOW PRICE GUARANTEE Zoom Doepfer A-183-4 Quad Level Shifter Modular EURORACK - NEW - PERFECT CIRCUIT $65.99 Contact Us 100% Satisfaction Guarantee Description The Doepfer Module A-183-4 is a fourfold level shifter. A level shifter is required if the level of a digital control signal has to be increased or decreased. A typical application is the conversion of a gate, trigger or clock signal with +5V voltage level (tolerance range +2...+5V) to +12 voltage level. The output voltage level can be set by means of a jumper to +12V or +5V. The factory setting is +12V. But it can be changed to convert also a higher to a lower level (e.g. +12V to +5V). But this application is required rarely. The output level setting by means of the jumper is global, i.e. it is valid for all four units and cannot be set individually for each unit. The four output signals are displayed by means of LEDs. The outputs and inputs of the four sub-units are normalled via the switching contacts of the input sockets, i.e. the output signal of the upper unit is used as input signal of the unit below provided that no patch cable is inserted into the input socket of the lower unit. That way the module can be used also as clock/trigger/gate buffer or buffered multiple for digital signals. For this the signal that has to be buffered is connected to input 1. The buffered (and possible level shifted) signal appears then at all four outputs. Shipping Warranty Low Price Guarantee Returns Restocking Fees Shipping In most cases, orders are processed and shipped within one business day. Orders placed before 1pm US Pacific time during the week are generally shipped the same day. Contact us with any questions or special requests and we will do our best to accommodate you. We offer free shipping on most items over $99 to destinations within the continental US. Hawaii, Alaska, Puerto Rico, and international destinations will require shipping and handling charges. We ship to most countries in the world via FedEx or USPS; most international orders are delivered within 5 business days of shipment, barring unforeseen delays caused by customs or weather conditions. We insure each package for its full value and require signature for most orders. International customers, take note that you are responsible for all duties and taxes imposed by your local government or customs officials. These fees are not included in our shipping/handling charges.
