Dual Ring Modulator and Multipiler for Eurorack Modular by Stoel Music Systems
Dual Ring Modulator and Multipiler for Eurorack Modular by Stoel Music Systems
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| +5V Current Draw | 0mV |
| Type Of Keys | None |
| Input/Output Ports | 2in/2out |
| Analog/Digital | Analog |
| MPN | EM1219 |
| Item Length | 20.3mm |
| Brand | Stoel Music Systems |
| Type | Modular Synthesizer |
| Mounting Depth | 21mm |
| -12V Current Draw | 10mV |
| HP Size | 4 HP |
| Item Height | 128mm |
| Model | EM1219 |
| Features | 4 Inputs |
| +12V Current Draw | 8mV |
| Item Weight | 0.1 lbs |
| Item Width | 29mm |

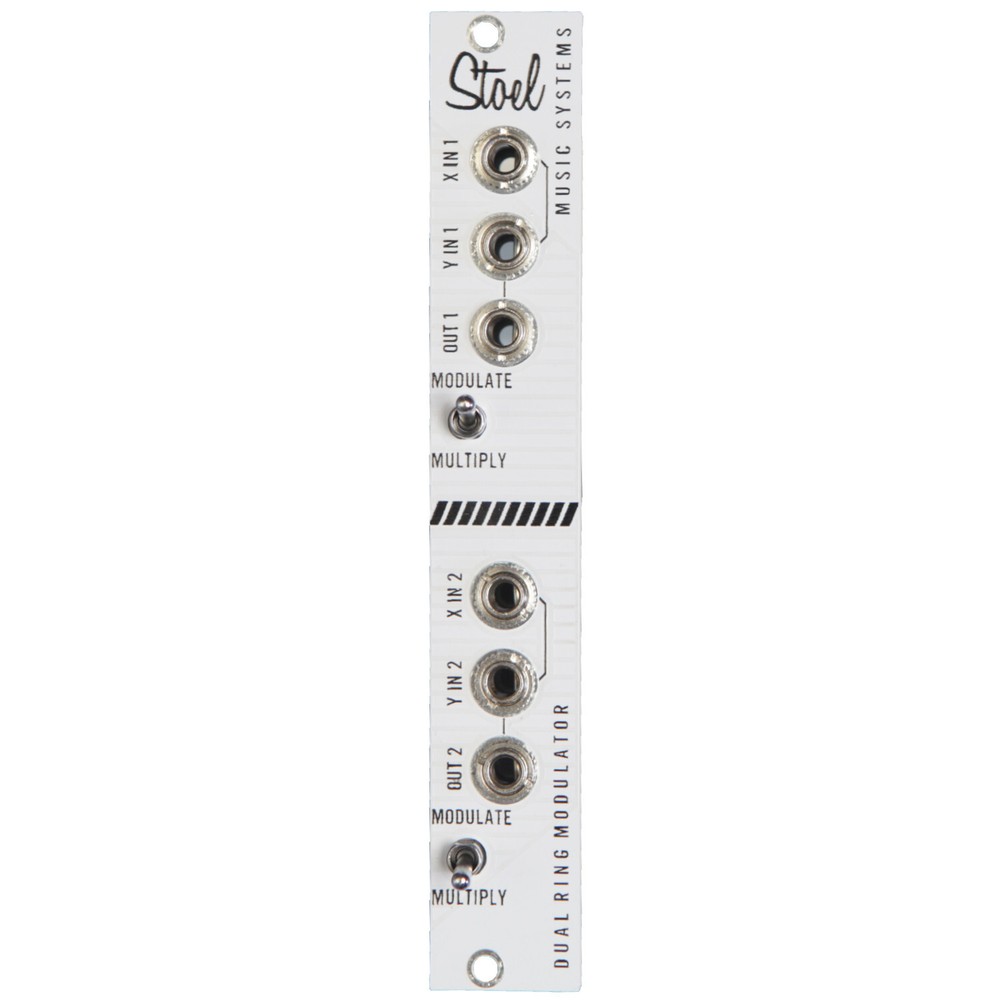

The Stoel Music Systems Dual Ring Modulator provides two classic analog ring modulators, which also feature a multiplication mode for added versatility. Depending on the front panel switch setting, the X and X inputs either modulate or multiply each other. All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss white finish. For a crisp appearance and exceptional durability, the front panel markings are digitally printed at high resolution with UV-cured ink. Mounting holes are plated to significantly reduce screw rash. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward. Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.
