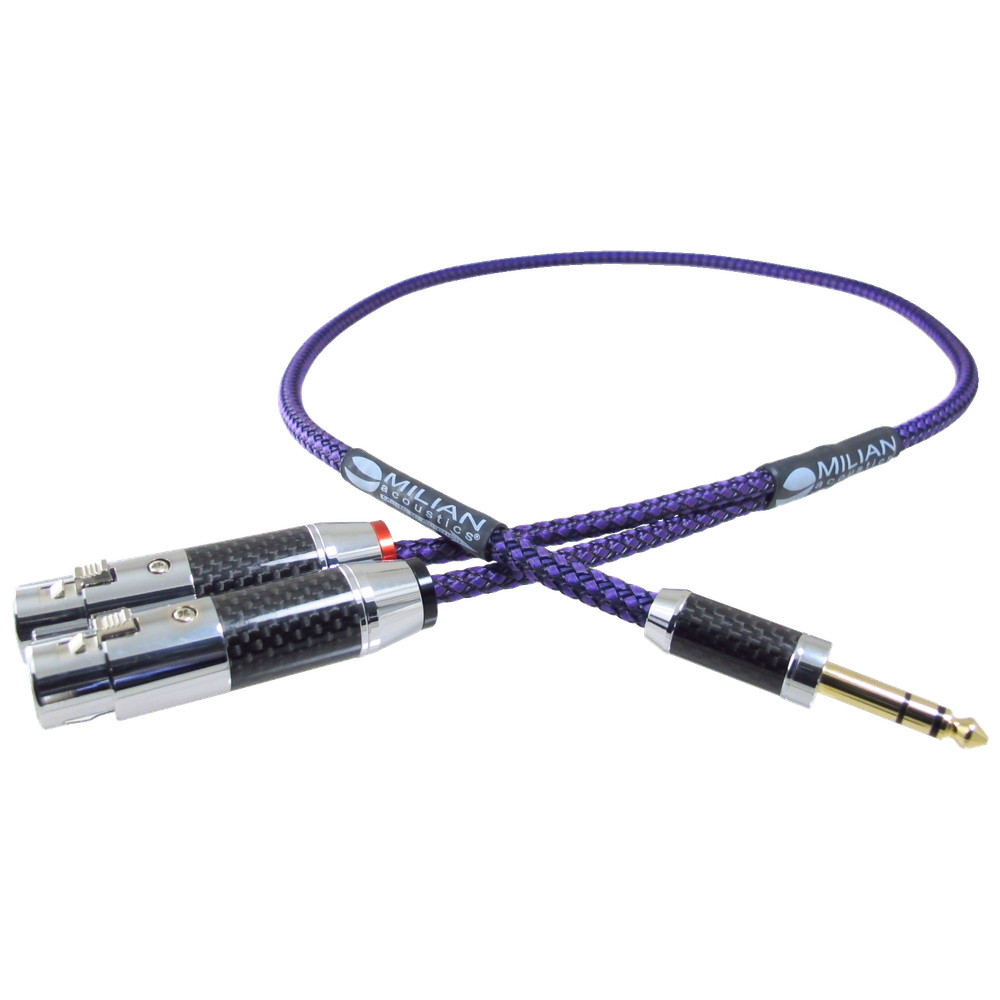

Dual XLR 3 Pin Female to 6.3 mm TRS Stereo Breakout Adapter Cable
Dual XLR 3 Pin Female to 6.3 mm TRS Stereo Breakout Adapter Cable
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Milian Acoustics |
| Color | Multicolor |
| Compatible Brand | Universal |
| Compatible Model | Universal |
| Connection Split/Duplication | 1:1 |
| Connector A | Dual 3 Pin XLR Female |
| Country/Region Of Manufacture | United States |
| Features | Gold Plated |
| Gauge | 24 AWG |
| Item Length | .5 ft |
| Manufacturer Warranty | 2 Years |
| MPN | dXLRf-6.3m |
This Stereo Breakout Cable will connect Dual XLR 3 Pin outputs to a 3.5 mm (1/8") TRS stereo input connection. This cable is primarily used to send output from mixers, dacs, and amplifiers into recording devices and receivers with 6.35 mm TRS inputs. It will also function as an adapter for balanced headphones terminated in dual 3 pin XLR male and convert it to 6.35 mm TRS for single ended headphone outputs. The Pinout is as follows, also pictured above: 6.3 mm Tip, Left Channel : XLR Left Pin 2 6.3 mm Ring, Right Channel : XLR Right Pin 2 6.3 mm Sleeve, Ground : XLR Left & Right, Pins 1 & 3 The Right XLR channel is marked in Red, and the Left is marked in Black. All cable options include excellent dielectric insulation and are fully shielded to reject EMI and RFI. This cable is available in OFC, SPOFC, OCC, & Pure Silver. OFC Cable Specs24 AWG Oxygen Free Copper conductors (4x per channel)High density braided copper shield.PE dielectric insulation.PVC Outer JacketOuter Cable Diameter: 6.3 mm SPOFC Cable Specs20 AWG Silver Plated Oxygen Free Copper Conductors (4x per channel)High density braided copper shield.PTFE Teflon dielectric insulationFEP Outer JacketOuter Cable Diameter: 5.8 mm OCC Cable Specs24 AWG Ohno Continuous Cast conductors (4x per channel)PE Dielectric InsulationHigh density braided copper shield.Aluminum Foil ShieldDouble Layer Outer PVC JacketOuter Cable Diameter: 8.4 mm Pure Silver Cable Specs27 AWG Pure Silver conductors (4x per channel)FEP Inner & PE Outer Layer Dielectric InsulationHigh density Silver Plated braided copper shield.Aluminum Foil ShieldDouble Layer Outer PVC JacketOuter Cable Diameter: 8.4 mm XLR 3 Pin Female Connector SpecsRhodium Plated Pure Copper PinsCarbon fiber and nonmagnetic stainless steel housing 6.3 mm TRS Plug Connector SpecsGold Plated Pure Copper ContactsCarbon fiber and nonmagnetic stainless steel housing
