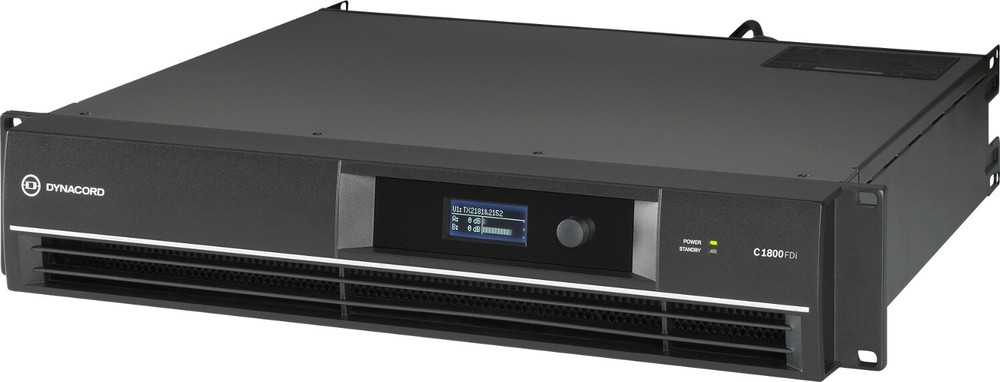

Dynacord C1800FDI-US DSP Power Amplifier with FIR Drive Phoenix Connectors
Dynacord C1800FDI-US DSP Power Amplifier with FIR Drive Phoenix Connectors
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Dynacord |
| MPN | C1800FDI-US |
| Type | Power |
| Model | C1800FDI-US |
The Dynacord C1800FDI is a DSP power amplifier 2x950W.FeaturesInstallation DSP amplifier, Euroblock connectorsFully integrated professional speaker processing with FIR Drive technologyMarket leading acoustic performance and rock solid reliabilityLow Z and 70/100V operation and power saving standby modeIntuitive system control software, makes setup and control easySpecificationsLoad Impedance: 2Ohm, 2.6Ohm, 4Ohm. 8OhmMaximum Output Power:Single Channel: 2Ohm:1600W; 2.6Ohm:1300W; 4Ohm: 950W 8Ohm: 480WDual Channel:Load Impedance: 2Ohm=1400W; 2.6Ohm=1200W; 4Ohm=850W; 8Ohm=450WHigh Impedance: 70V Operation=2x 1250WMaximum Output Power, Bridged Load Impedance: 4Ohm=2800W; 8Ohm=1700W; High Impedance: 70V Operation=1x 600W; 100V Operation=1x1250WMaximum RMS Voltage Swing, THD = 1%, 1kHz: 65.1VVoltage Gain ref.1kHz: 32.0dBIMD-SMPTE, 60 Hz, 7 kHz:DIM 30:Maximum Input Level: +21dBuCrosstalk:Frequency Response: 10 Hz to 21 kHz (±1 dB)Input Impedance, active balanced: 20kOhmSignal-to-Noise Ratio (A-weighted): >105dBOutput Noise , A-weighted:Output Stage Topology: Class ABPower Requirement: 240 V, 230 V, 120 V or 100 V; 50Hz to 60 Hz (factory configured)Power Consumption: 700W (? Maximum Output Power @4Ohm)Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delayCooling: Front-to-rear, 3-stage-fansSafety Class: IAvailable Color: BlackDimensions (HxWxD): 3.46" x 19.02" x 18.2" (88 x 483 x 462.4mm)Weight Net: 33.51lbs (15.2kg)Signal Processing: FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedanceMains Fuse: 240 V/230 V: T10AH; 120 V/100 V: T20AHOperating Temperature Range: 40°F to+105°F (+5°C to +40°C)Remote Power ON/GPIO: Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selectionTotal Harmonic Distortion:
