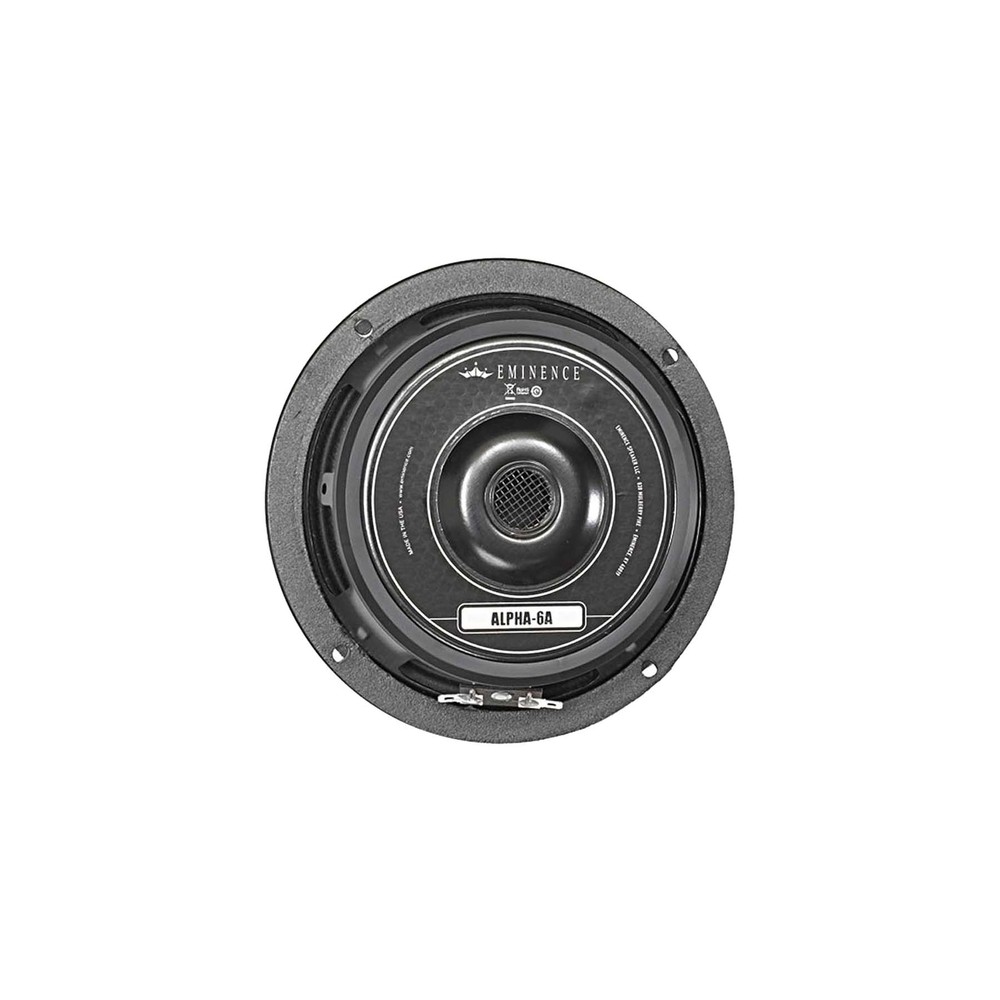

Eminence ALPHA-6A 6.5″ 8ohm Pro Audio Woofer Midrange Speaker 200W 1.5 in VC
Eminence ALPHA-6A 6.5″ 8ohm Pro Audio Woofer Midrange Speaker 200W 1.5 in VC
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Unit Type | Unit |
| Compatible Brand | Universal |
| Type | Woofer |
| MPN | ALPHA-6A |
| Brand | Eminence |
| Power RMS (Watts) | 100 |
| Power Max (Watts) | 200 |
| Frequency Range | 95Hz - 6Khz |
| Sensitivity (dB) | 93.6 |
| Gap Height (mm) | 6.4 |
| VoiceCoilDia (in) | 1.5 |
| Resonant Frequency (fs) Hz | 103 |
| DC Resistance (Re) | 7.2 |
| Coil Inductance (Le) MH | 0.19 |
| Mechanical Q (Qms) | 5.68 |
| Electromagnetic Q (Qes) | 0.6 |
| Total Q (Qts) | 0.54 |
| Compliance Equivalent Volume (Vas) Ltr | 5.8 |
| Compliance Equivalent Volume (Vas) Cuft | 0.2 |
| Mechanical Compliance Of Suspension (Cms) Mm/N | 0.26 |
| Efficiency Bandwidth Product (EBP) | 159 |
| Maximum Linear Excursion (Xmax) Mm | 3.5 |
| Surface Area Of Cone (Sd) Cm2 | 126.7 |
| Driver Volume Displaced (liters) | 0.41 |
| Overall Diameter (in) | 6.59 |
| Baffle Hole Diameter (in) | 5.65 |
| Screw Holes Diameter (in) | 0.23 |
| Mounting Hole Centers Across (in) | 6.06 |
| Depth (in) | 2.8 |
| Net Weight (lbs) | 4.1 |
| Ship Weight (lbs) | 4.8 |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Material | Ferrite magnet |
| Basket Material | Pressed steel basket |
| Cone Composition | Paper cone |
Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure. Midbass | Midrange | Pro Audio | Car Audio | Home Stereo | Home Theater Box Type: Sealed | Vented | Horn Loading SPECIFICATIONNominal Basket Diameter6", 165 mmNominal Impedance*8 ΩPower Rating*Program Power200 WWatts100 WResonance103 HzUsable Frequency Range95 Hz - 6 kHzSensitivity*93.6 dBMagnet Weight20 oz.Gap Height0.25", 6.4 mmVoice Coil Diameter1.5", 38 mmTHIELE & SMALL PARAMETERSResonant Frequency (fs)103 HzDC Resistance (Re)7.2 ΩCoil Inductance (Le)0.19m HMechanical Q (Qms)5.68Electromagnetic Q (Qes)0.6Total Q (Qts)0.54Compliance Equivalent Volume (Vas)5.8 liters / 0.2 cu.ft.Peak Diaphragm Displacement Volume (Vd)44 ccMechanical Compliance of Suspension (Cms)0.26 mm/NBL Product (BL)8 T-MDiaphragm Mass Inc. Airload (MMs)7 gramsEfficiency Bandwidth Product (EBP)159Maximum Linear Excursion (Xmax)3.5 mmSurface Area of Cone (Sd)126.7 cm2Maximum Mechanical Limit (Xlim)4 mmMOUNTING INFORMATIONRecommended Enclosure VolumeSealed2.8-5.7 liters / 0.1-0.2 cu.ft.Vented3.4-15.6 liters / 0.12-0.55 cu.ft.Driver Volume Displaced0.014 cu.ft. / 0.41 litersOverall Diameter6.59", 167.4 mmBaffle Hole Diameter5.65", 143.5 mmFront Sealing GasketYesRear Sealing GasketYesMounting Holes Diameter0.23", 5.8mmMounting Holes B.C.D.6.06", 153.9mmDepth2.8", 71.1 mmNet Weight4.1 lbs, 1.86 kgShipping Weight4.8 lbs, 2.18 kgsMATERIALS OF CONSTRUCTIONCoil ConstructionCopper voice coilCoil FormerPolyimide formerMagnet CompositionFerrite magnetCore DetailsVented and extended core Basket MaterialsPressed steel basketCone CompositionPaper coneCone Edge CompositionCloth cone edgeDust Cap CompositionSolid composition paper dust ca
