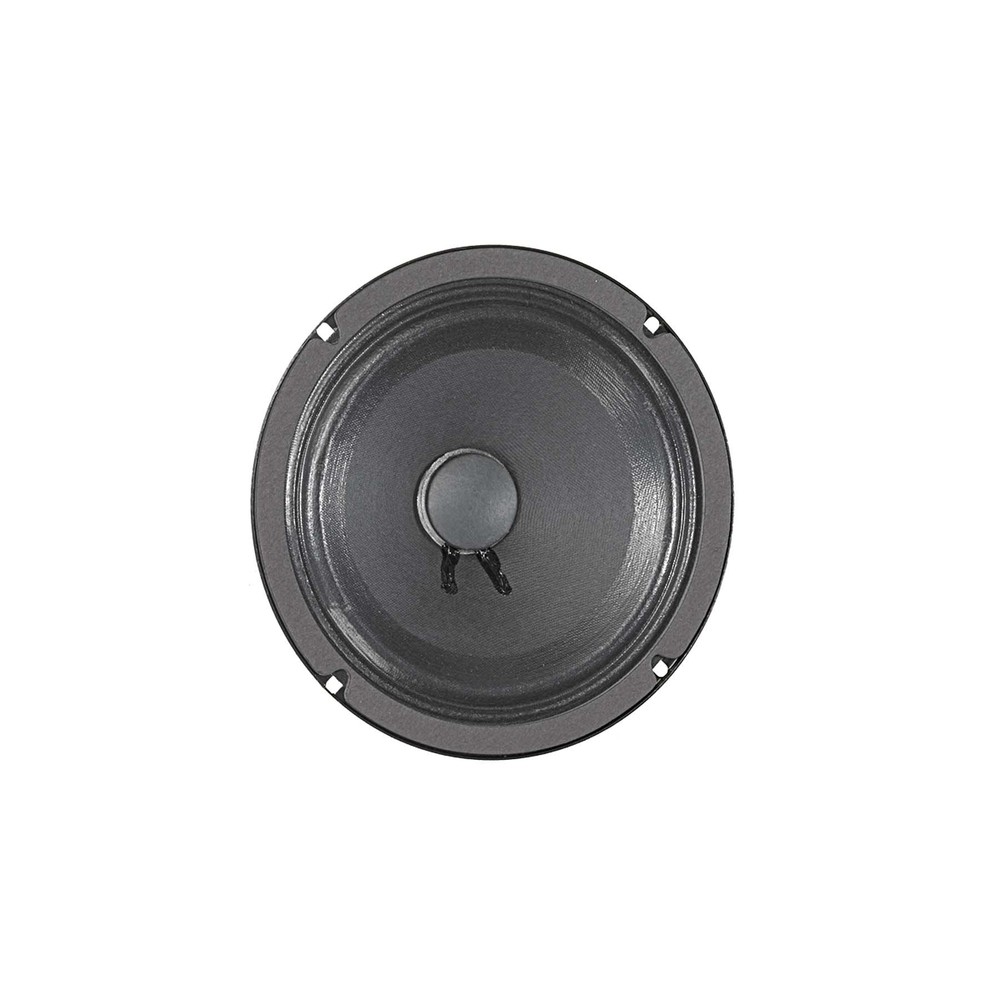

Eminence ALPHA-8MRA 8″ 8ohm Pro Audio Midrange Speaker 250W 1.5 in VC

Eminence ALPHA-8MRA 8″ 8ohm Pro Audio Midrange Speaker 250W 1.5 in VC

USD 109.99 USD

SKU: DXxKkEU3

Condition: New

Tags: 0.01 0.03 0.22 0.34 0.58 0.8 1 : 6 1.42 1.5 1.5 In 100.9 125 2.08 205.9 247 250 3.25 30 Days 4.4 4.48 400Hz - 4.8Khz 5.1 514 6.4" 7.19 7.32 7.78 8.22 8.9 ALPHA-8MRA Copper voice coil Eminence Ferrite magnet Midrange Driver Paper cone Polyimide former Returns Accepted Seller Unit Universal

Categories: Pro Audio Equipment

Specifications

Return Shipping Will Be Paid By	Seller
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Unit Type	Unit
Compatible Brand	Universal
Type	Midrange Driver
MPN	ALPHA-8MRA
Brand	Eminence
Power RMS (Watts)	125
Power Max (Watts)	250
Frequency Range	400Hz - 4.8Khz
Sensitivity (dB)	100.9
Gap Height (mm)	6.4
VoiceCoilDia (in)	1.5
Resonant Frequency (fs) Hz	514
DC Resistance (Re)	7.32
Coil Inductance (Le) MH	0.34
Mechanical Q (Qms)	4.48
Electromagnetic Q (Qes)	2.08
Total Q (Qts)	1.42
Compliance Equivalent Volume (Vas) Ltr	0.8
Compliance Equivalent Volume (Vas) Cuft	0.03
Mechanical Compliance Of Suspension (Cms) Mm/N	0.01
BL Product (BL) T-M	8.9
Efficiency Bandwidth Product (EBP)	247
Maximum Linear Excursion (Xmax) Mm	1.6
Surface Area Of Cone (Sd) Cm2	205.9
Driver Volume Displaced (liters)	0.58
Overall Diameter (in)	8.22
Baffle Hole Diameter (in)	7.19
Screw Holes Diameter (in)	0.22
Mounting Hole Centers Across (in)	7.78
Depth (in)	3.25
Net Weight (lbs)	4.4
Ship Weight (lbs)	5.1
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Material	Ferrite magnet
Cone Composition	Paper cone

Recommended for pro audio and bass guitar applications as a midrange. Sealed basket makes this woofer independent of enclosure design.
