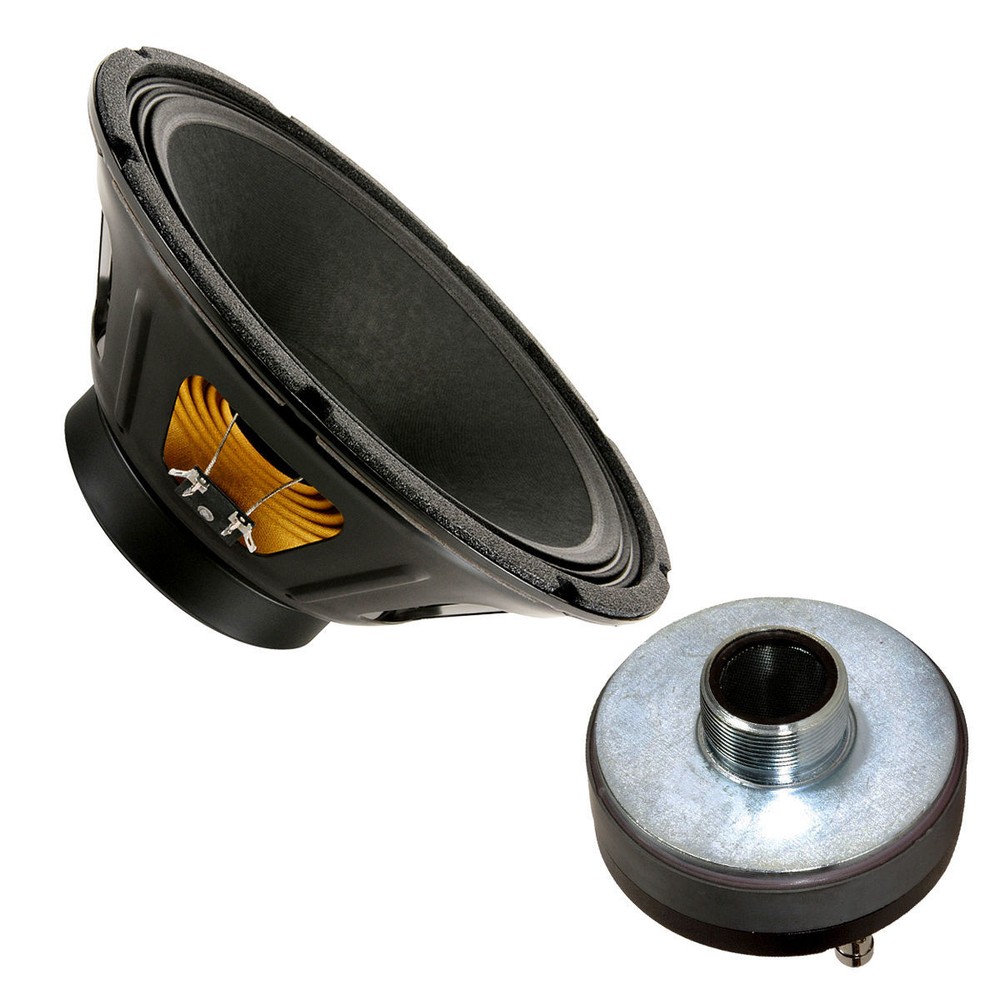

EMINENCE BETA 12CX 12″ Coaxial WOOFER With ASD1001 1″ Titanium HORN DRIVER
EMINENCE BETA 12CX 12″ Coaxial WOOFER With ASD1001 1″ Titanium HORN DRIVER
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Size | 12" |
| Sensitivity (dB) | 96.4 dB 1W/1m |
| DC Resistance (Re) | 5.57 ohms |
| MPN | Beta-12CX |
| Maximum Mechanical Limit (Xlim) | 10.4 mm |
| BL Product (BL) | 10 Tm |
| Core Pole Detail | Extended Core |
| Depth | 4.47" |
| Cone Material | Paper |
| Magnet Material | Ferrite |
| Sold As | Each |
| Voice Coil Inductance (Le) | 1.01 mH |
| Manufacturer Warranty | 1 Year |
| Voice Coil Former | Polyimide |
| Compatible Brand | Universal |
| Driver Displacement | 122 |
| Electromagnetic Q (Qes) | 0.51 |
| Nominal Impedance | 8ohm |
| Peak Power (Watts) | 500 Watts |
| Baffle Hole Diameter | 10.95" |
| Compatible Model | universal |
| Brand | Eminence |
| Type | Woofer |
| Bolt Circle Diameter | 11.5625 |
| Basket Material | Steel |
| Model | Beta-12CX |
| Country/Region Of Manufacture | United States |
| Cone Shape | Paper |
| Magnet Weight | 38 oz. |
EMINENCE BETA 12CX 12" Coaxial WOOFER With ASD1001 1" Titanium HORN DRIVEREMINENCE BETA 12CX 12" Coaxial WOOFER With ASD1001 1" Titanium HORN DRIVERRecommended for professional audio in either vented or sealed satellite or floor monitor enclosures. Coaxial design for extended HF. Combined with the new ASD1001, Eminence has answered your call for an affordable Coax with response to 20kHz. American Originals represent the Eminence commitment to "make a better speaker for less." The high-quality pressed steel frames of these speakers are often stronger than the cast frames of other manufacturers. With a seven-year warranty, no other speaker provides more value! Made in the U.S.A. Seven-Year manufacturer's warranty!/ SpecificationsBrandEMINENCEModelBETA 12CX/ASD1001Nominal Impedance(ohms)8Power Handling RMS(Watts)250Power handling Peak(Watts)500Usable Frequency Range(Hz)66-20,000Sensitivity(dB)96.4Magnet Weight(oz)38ozSheilded MagnetNoVoice Coil Gap Height6.92 mmVoice Coil Diameter2"Coil FormerPolyimideMagnet CompositionFerriteCore/Pole DetailsExtended CoreBasket MaterialStamped SteelCone CompositionPaperSurround CompositionAccordion ClothDust Cap CompositionScreaned ClothNet Weight(lb)10.03Thiele & Small ParametersResonant Frequency(fs)47DC Resistance(Re)5.57Coil Inductance(Le)1.01Mechanical Q(Qms)6.69Electromagnetic Q(Qes)0.51Total Q(Qts)0.48Compliance Equiv Vol(Vas)161LPeak Displacement186 ccMechanical Compliance(cm2)(Vd).4 mm/NBL Product(BL)10 TmMoving Mass(MMs)34 gSurface Area of Cone(Sd)532.4 cm2Max Linear Excursion(Xmax)3.5 mmMax Excursion(Xdam)(Xlim)10.4 mmMounting InformationSealed Eclosure28-42.5LVented Enclosure37-71LDriver Diplacement122Overall Diameter12.0625Bolt Circle Diameter11.5625Baffle Hole Diameter11Depth6.5Sealing Gasket(Front,Rear)Front & Rear
