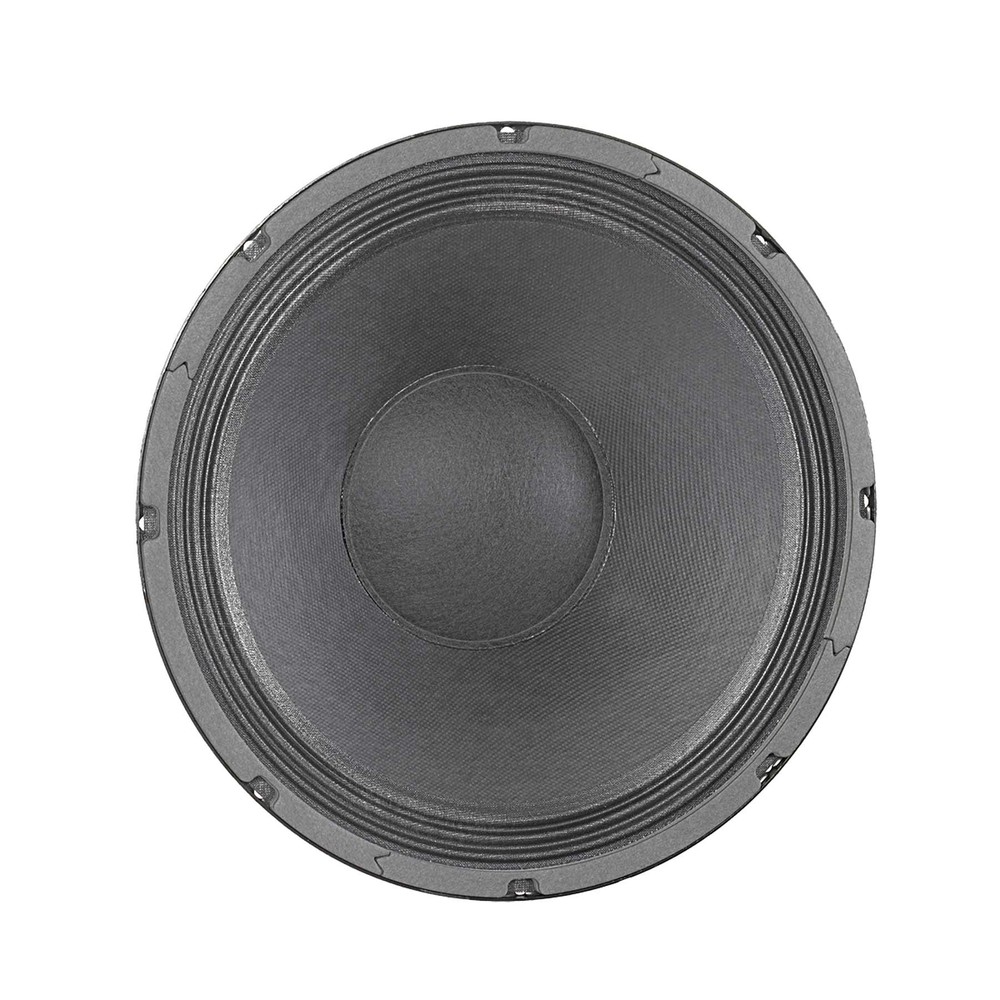

Eminence DELTA 12A 12″ 8ohm Pro Audio Woofer Midrange Speaker 800W 2.5 in VC

Eminence DELTA 12A 12″ 8ohm Pro Audio Woofer Midrange Speaker 800W 2.5 in VC

USD 124.99 USD

SKU: Djc2uiUh

Condition: New

Tags: 0.21 0.25 0.43 0.46 0.74 11.07 11.4 11.59 12 in 12.03 120 125 13.5 2.25 2.4 2.5 2.87 30 Days 400 5.27 5.35 519.5 54Hz - 5Khz 6.3 800 81.3 9.5 9.9 98.3 Aluminum voice coil DELTA 12A Eminence Ferrite magnet Paper cone Polyimide former Pressed steel basket Returns Accepted Seller Unit Universal woofer

Categories: Pro Audio Equipment

Specifications

Return Shipping Will Be Paid By	Seller
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Unit Type	Unit
Compatible Brand	Universal
Type	Woofer
MPN	DELTA 12A
Brand	Eminence
Power RMS (Watts)	400
Power Max (Watts)	800
Frequency Range	54Hz - 5Khz
Sensitivity (dB)	98.3
Gap Height (mm)	9.5
VoiceCoilDia (in)	2.5
DC Resistance (Re)	6.3
Coil Inductance (Le) MH	0.74
Mechanical Q (Qms)	5.27
Electromagnetic Q (Qes)	0.46
Total Q (Qts)	0.43
Compliance Equivalent Volume (Vas) Ltr	81.3
Compliance Equivalent Volume (Vas) Cuft	2.87
Peak Diaphragm Displacement Volume (Vd)	125
Mechanical Compliance Of Suspension (Cms) Mm/N	0.21
BL Product (BL) T-M	13.5
Efficiency Bandwidth Product (EBP)	120
Maximum Linear Excursion (Xmax) Mm	2.4
Surface Area Of Cone (Sd) Cm2	519.5
Maximum Mechanical Limit (Xlim) Mm	9.9
Driver Volume Displaced (liters)	2.25
Overall Diameter (in)	12.03
Baffle Hole Diameter (in)	11.07
Screw Holes Diameter (in)	0.25
Mounting Hole Centers Across (in)	11.59
Depth (in)	5.35
Net Weight (lbs)	11.4
Ship Weight (lbs)	13.5
Coil Construction	Aluminum voice coil
Coil Former	Polyimide former
Magnet Material	Ferrite magnet
Basket Material	Pressed steel basket
Cone Composition	Paper cone

Recommended for professional audio as a mid-bass or woofer (with high-pass filter) in vented enclosures.
