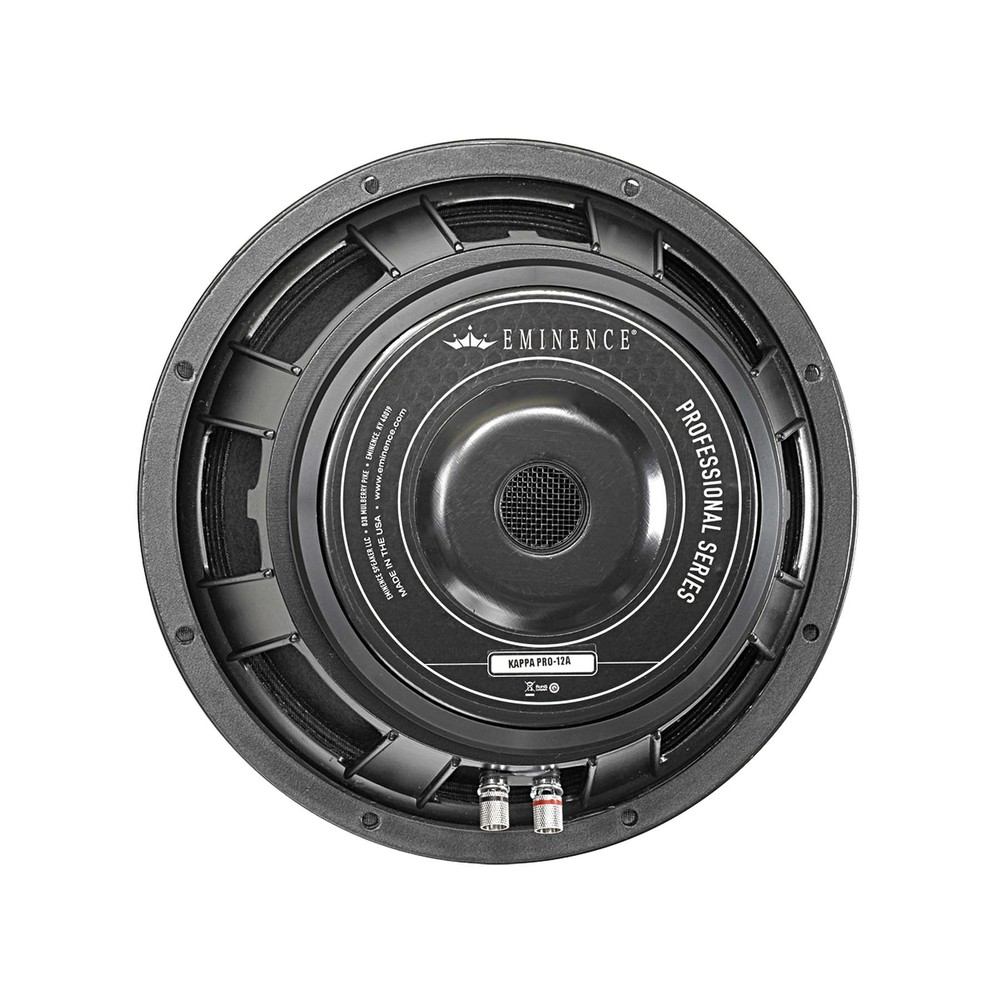

Eminence KAPPA PRO-12A 12″ 8ohm Pro Audio Woofer Midrange Speaker 1000W 3 in VC

Eminence KAPPA PRO-12A 12″ 8ohm Pro Audio Woofer Midrange Speaker 1000W 3 in VC

USD 174.99 USD

SKU: Hjc2uiUq

Brand: Eminence

MPN: KAPPA PRO-12A

GTIN: 8 76358 00036 4

Condition: New

Tags: 0.24 0.25 0.27 0.32 1.22 1000 11.07 11.69 12.38 121 14.8 148 16.6 17.3 18.4" 2.55 249 4.27 4.8” 5.46 500 519.5 57Hz - 2.8Khz 6.22 6.93 8 76358 00036 4 9.5 97.1 Copper voice coil Eminence Ferrite magnet KAPPA PRO-12A Kappa-12A Paper cone Polyimide former Unit Universal woofer

Categories: Pro Audio Equipment

Specifications

Unit Type	Unit
Compatible Brand	Universal
Type	Woofer
MPN	KAPPA PRO-12A
Brand	Eminence
Power RMS (Watts)	500
Power Max (Watts)	1000
Frequency Range	57Hz - 2.8Khz
Sensitivity (dB)	97.1
Gap Height (mm)	9.5
DC Resistance (Re)	5.46
Coil Inductance (Le) MH	1.22
Mechanical Q (Qms)	6.93
Electromagnetic Q (Qes)	0.25
Total Q (Qts)	0.24
Compliance Equivalent Volume (Vas) Ltr	121
Compliance Equivalent Volume (Vas) Cuft	4.27
Peak Diaphragm Displacement Volume (Vd)	249
Mechanical Compliance Of Suspension (Cms) Mm/N	0.32
BL Product (BL) T-M	17.3
Efficiency Bandwidth Product (EBP)	148
Maximum Linear Excursion (Xmax) Mm	4.8
Surface Area Of Cone (Sd) Cm2	519.5
Maximum Mechanical Limit (Xlim) Mm	14.8
Driver Volume Displaced (liters)	2.55
Overall Diameter (in)	12.38
Baffle Hole Diameter (in)	11.07
Screw Holes Diameter (in)	0.27
Mounting Hole Centers Across (in)	11.69
Depth (in)	6.22
Net Weight (lbs)	16.6
Ship Weight (lbs)	18.4
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Material	Ferrite magnet
Cone Composition	Paper cone
UPC	8 76358 00036 4

Woofer | Midbass | Pro Audio. Watts 500 W. Program Power 1000 W. Magnet Weight 80 oz. Coil Construction Copper voice coil. Basket Materials Die-cast aluminum basket. MATERIALS OF CONSTRUCTION. Net Weight 16.6 lbs, 7.53 kg.
