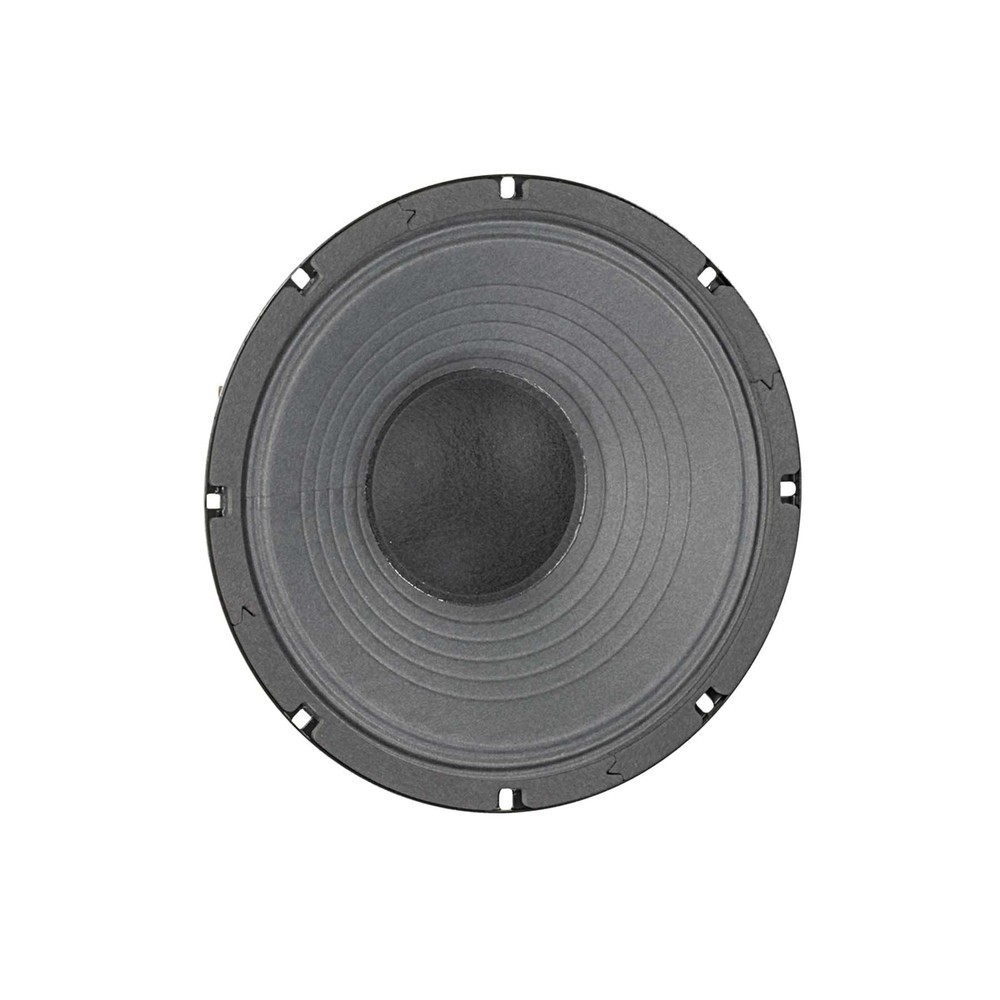

Eminence LEGEND 1058 10″ 8ohm Pro Audio Guitar Speaker 75W 1.5 in VC
Eminence LEGEND 1058 10″ 8ohm Pro Audio Guitar Speaker 75W 1.5 in VC
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Unit Type | Unit |
| Compatible Brand | Universal |
| Type | Guitar Speaker |
| MPN | LEGEND 1058 |
| Brand | Eminence |
| Frequency Range | 100Hz - 5Khz |
| Sensitivity (dB) | 98.7 |
| Gap Height (mm) | 6.4 |
| VoiceCoilDia (in) | 1.5 |
| DC Resistance (Re) | 7.49 |
| Coil Inductance (Le) MH | 0.56 |
| Mechanical Q (Qms) | 17.78 |
| Electromagnetic Q (Qes) | 1.21 |
| Total Q (Qts) | 1.13 |
| Compliance Equivalent Volume (Vas) Ltr | 26.4 |
| Compliance Equivalent Volume (Vas) Cuft | 0.93 |
| Mechanical Compliance Of Suspension (Cms) Mm/N | 0.16 |
| Surface Area Of Cone (Sd) Cm2 | 344.9 |
| Driver Volume Displaced (liters) | 0.93 |
| Overall Diameter (in) | 10.11 |
| Baffle Hole Diameter (in) | 9.13 |
| Screw Holes Diameter (in) | 0.23 |
| Mounting Hole Centers Across (in) | 9.6 |
| Depth (in) | 4.1 |
| Net Weight (lbs) | 4.4 |
| Ship Weight (lbs) | 5.4 |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Material | Ferrite magnet |
| Basket Material | Pressed steel basket |
| Cone Composition | Paper cone |
| Guitar Genre | Blues, Country, Rock |
The Eminence Legend 1058 guitar speaker takes classic tone a step further. Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth. SeriesLegendsModelLegend 1058Application10" Open or Closed BackConfiguration1, 2, or 4 X 10"Low End ResponseModerateLow End ShapeChunkyMid-Range ResponseModerateMid-Range ShapeWarmHigh-End ResponseModerateVolume/PowerLouderOverall Coloration*Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.Break-up ModesMediumPower RangeUp to 75 wattsInstrument*Lead/Rhythm GuitarGenre of Music*Country, Blues, Rock, JazzSPECIFICATIONNominal Basket Diameter10", 254 mmNominal Impedance*8 ΩPower Rating*Program PowerN/AWatts75 WResonance97 HzUsable Frequency Range100 Hz - 5 kHzSensitivity*98.7 dBMagnet Weight16 oz.Gap Height0.25", 6.4 mmVoice Coil Diameter1.5", 38 mmTHIELE & SMALL PARAMETERSResonant Frequency (fs)97 HzDC Resistance (Re)7.49 ΩCoil Inductance (Le)0.56m HMechanical Q (Qms)17.78Electromagnetic Q (Qes)1.21Total Q (Qts)1.13Compliance Equivalent Volume (Vas)26.4 liters / 0.93 cu.ft.Peak Diaphragm Displacement Volume (Vd)0 ccMechanical Compliance of Suspension (Cms)0.16 mm/NBL Product (BL)8 T-MDiaphragm Mass Inc. Airload (MMs)17 gramsEfficiency Bandwidth Product (EBP)80Maximum Linear Excursion (Xmax)0 mmSurface Area of Cone (Sd)344.9 cm2Maximum Mechanical Limit (Xlim)N/AMOUNTING INFORMATIONRecommended Enclosure VolumeSealedAcceptableVentedAcceptableDriver Volume Displaced0.033 cu.ft. / 0.93 litersOverall Diameter10.11", 256.8 mmBaffle Hole Diameter9.13", 231.9 mmFront Sealing GasketYesRear Sealing GasketYesMounting Holes Diameter0.23", 5.8mmMounting Holes B.C.D.9.6", 243.8mmDepth3.5", 88.9 mmNet Weight4.4 lbs, 2 kgShipping Weight5.4 lbs, 2.45 kgsMATERIALS OF CONSTRUCTIONCoil ConstructionCopper voice coilCoil FormerPolyimide formerMagnet CompositionFerrite magnetCore DetailsNon-vented core Basket MaterialsPressed steel basketCone CompositionPaper coneCone Edge CompositionPaper cone edgeDust Cap CompositionSolid composition felt dust cap
