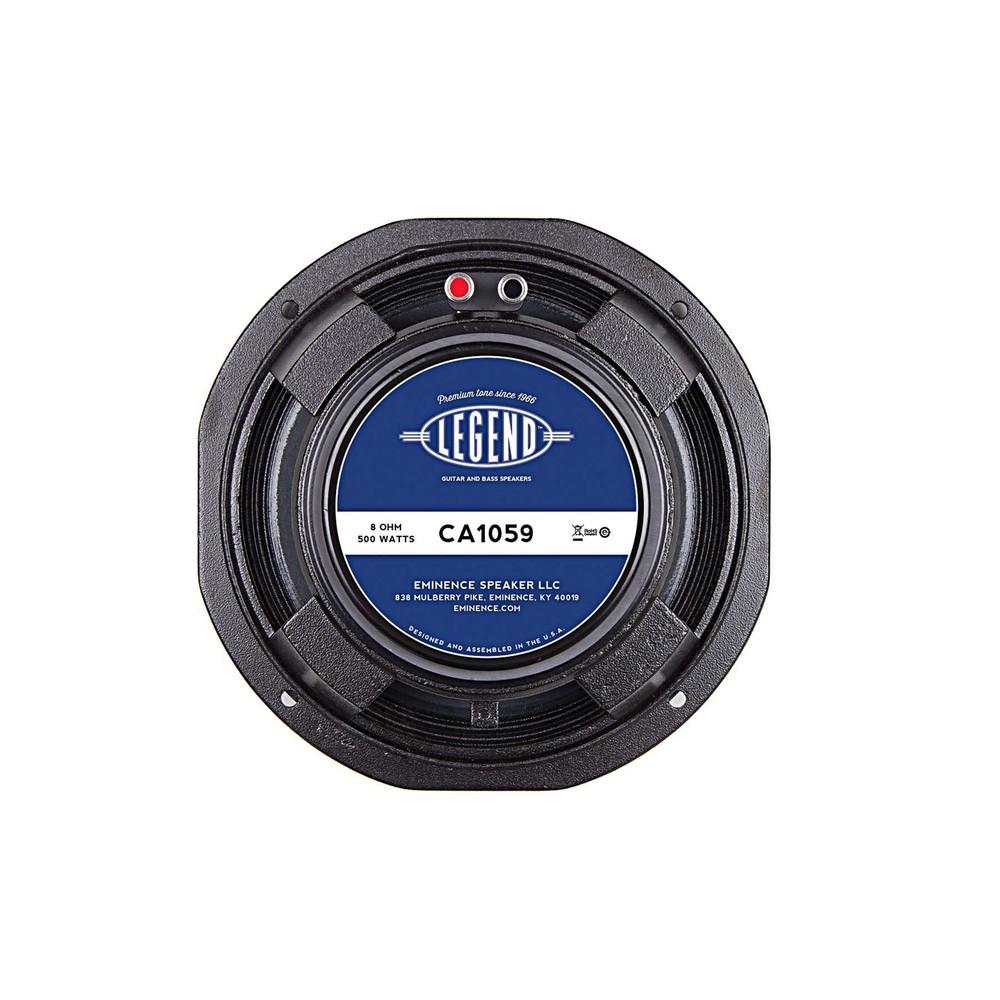

Eminence LEGEND CA1059 10″ 8ohm Pro Audio Bass Guitar Speaker 500W 2 in VC

Eminence LEGEND CA1059 10″ 8ohm Pro Audio Bass Guitar Speaker 500W 2 in VC

USD 169.99 USD

SKU: EhBsrySy

Brand: Eminence

MPN: LEGEND CA1059

GTIN: 8 76358 00392 1

Condition: New

Tags: 0.11 0.26 0.28 0.32 0.42 1.72 10.5 11.2 12.54 12.7 in 12.7" 165.3 169 2.52 250 3.27" 350.1 4.53 4.72 5.53 500 50Hz - 3.2Khz 71.47 8 76358 00392 1 9.01 9.71 98.7 Cloth cone edge Eminence Ferrite magnet LEGEND CA1059 Polyimide former Unit Universal woofer

Categories: Pro Audio Equipment

Specifications

Unit Type	Unit
Compatible Brand	Universal
Type	Woofer
MPN	LEGEND CA1059
Brand	Eminence
Power RMS (Watts)	250
Power Max (Watts)	500
Frequency Range	50Hz - 3.2Khz
Sensitivity (dB)	98.7
DC Resistance (Re)	5.53
Coil Inductance (Le) MH	0.11
Mechanical Q (Qms)	3.27
Electromagnetic Q (Qes)	0.28
Total Q (Qts)	0.26
Compliance Equivalent Volume (Vas) Ltr	71.47
Compliance Equivalent Volume (Vas) Cuft	2.52
Peak Diaphragm Displacement Volume (Vd)	165.3
Mechanical Compliance Of Suspension (Cms) Mm/N	0.42
BL Product (BL) T-M	12.54
Efficiency Bandwidth Product (EBP)	169
Maximum Linear Excursion (Xmax) Mm	4.72
Surface Area Of Cone (Sd) Cm2	350.1
Driver Volume Displaced (liters)	1.72
Overall Diameter (in)	10.5
Baffle Hole Diameter (in)	9.01
Screw Holes Diameter (in)	0.32
Mounting Hole Centers Across (in)	9.71
Depth (in)	4.53
Net Weight (lbs)	11.2
Ship Weight (lbs)	12.7
Coil Former	Polyimide former
Magnet Material	Ferrite magnet
Cone Composition	Cloth cone edge
UPC	8 76358 00392 1

Along with higher Xmax, the CA1059 also features a larger 59 oz. ferrite magnet, producing higher efficiency, and lower Qts for dampening than its smaller magnet version. Program Power 500 W. Coil Construction Edge wound Aluminum Voice Coil.
