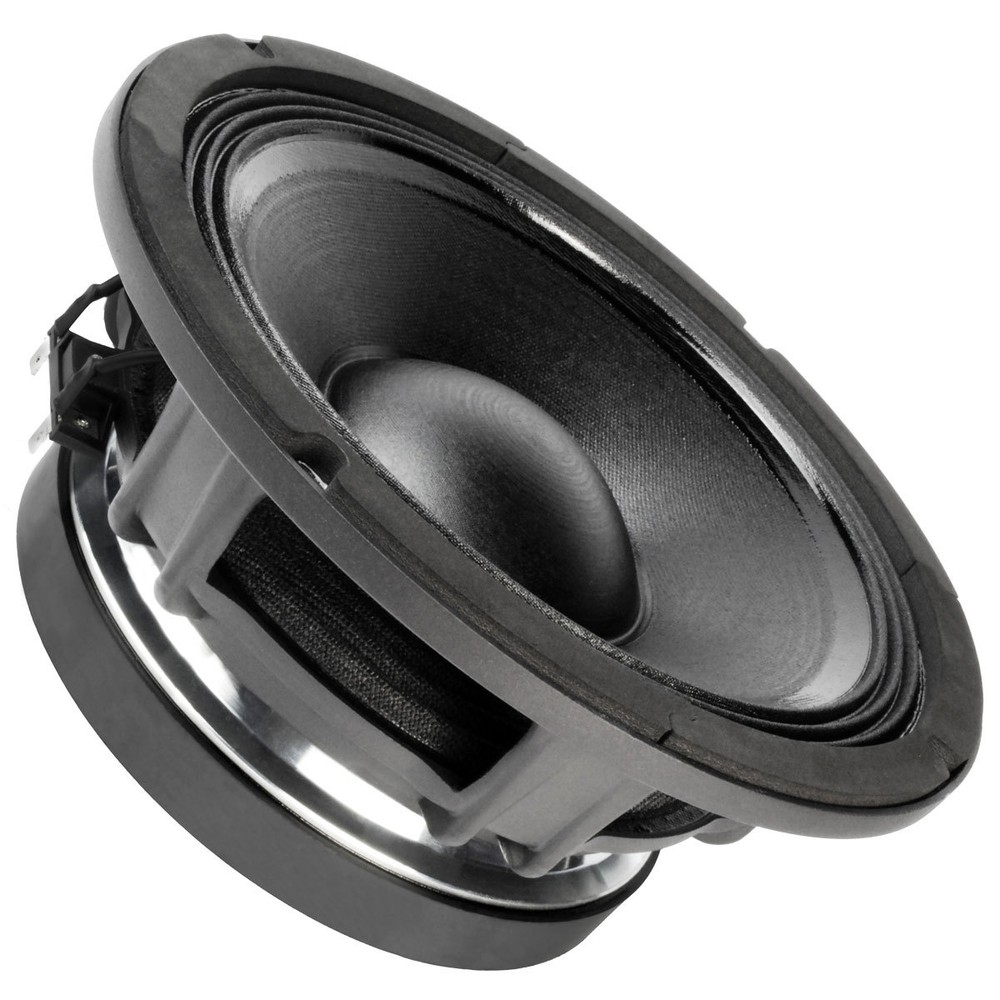

FaitalPRO 10FH530 10″ Professional Woofer Speaker 8 ohms 1,000W 97 dB 3″VC
FaitalPRO 10FH530 10″ Professional Woofer Speaker 8 ohms 1,000W 97 dB 3″VC
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | Italy |
| Compatible Brand | Universal |
| Model | 10FH530 |
| Nominal Impedance(Ohms) | 8ohm |
| Nominal Diameter | 10" |
| Power Handling | 1000 W |
| Type | Woofer |
| General Application | Pro |
| Magnet Composition | Ferrite |
| Max Linear Excursion | 7.50 mm |
| MPN | 10FH530 |
| Part Number | 294-1213 |
| Brand | Faital |
FaitalPRO 10FH530 10" Professional Woofer Speaker 8 ohms 1,000W 97 dB 3"VC SpecificationsAdditional Data BrandFAITAL PROModel10FH530Nominal Diameter10"Nominal Impedance8ohmRMS Power500 WPeak Power (Watts)1000 WSensitivity (dB)97 dBMax Excursion(Xdam)(Xlim)18.8 mmMax Linear Excursion (Xmax)7.50 mmUsable Frequency Range (Hz)60-4k HzSurround ShapeTriple RollBasket / Frame MaterialAluminumSpider Detail/Material1x variable height wavesVoice Coil Diameter3"Voice Coil FormerGlass FiberVoice Coil Wire MaterialAluminumVoice Coil Winding Depth18.5 mmVoice Coil Gap Height10.5 mmDemodulating RingAluminum RingMagnet MaterialFerriteParametersCompliance Equivalent Volume (Vas)0.72 Ft3Total Q (Qts)0.25Mechanical Q (Qms)12.4Electromagnetic Q (Qes)0.25Minimum Impedance (Zmin)6.4ohmDC Resistance (Re)5.1 ohmMechanical Resistance (Rms)3.37 lbs/secSurface Area of Cone (Sd)49.76 in2Voice Coil Inductance (Le)0.8 mHFlux Density1.2 TBL Product(Bl)19.5 T-mMoving Mass Of Diaphragm (Mmd)47.0 gMoving Mass(MMs)50.3 gReference Efficiency (No)0.017Mechanical Compliance (Cms)0.14 mm/NEBP240 HzDriver Displacement122 in3Mounting and Shipping InformationOverall Diameter10.28"Baffle Hole Diameter9.06"Bolt Circle Diameter9.69"Flange and Gasket Thickness0.45"Depth5.12"Net Weight(lb)18.2
