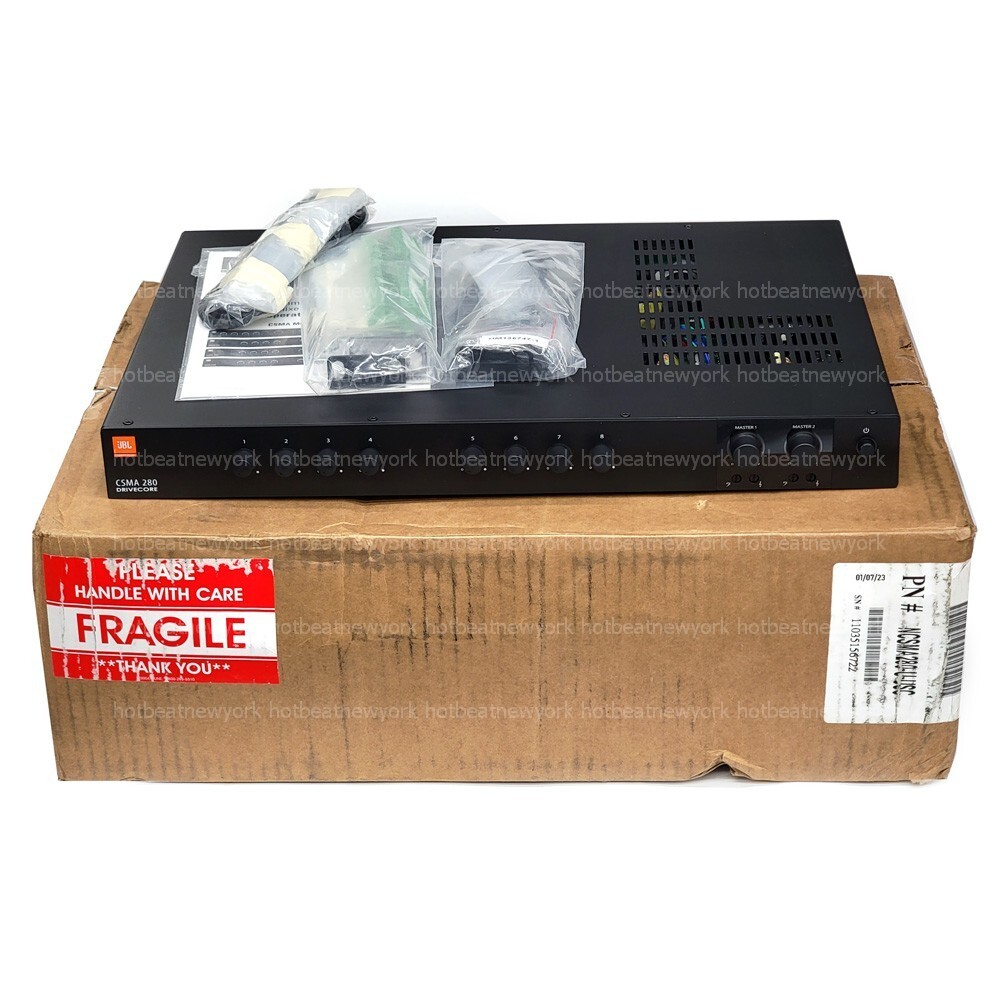

JBL CSMA280 Commercial Restaurant 2 x 80 W Amplifier 4ohm/8ohm/70V/100V 8 input
JBL CSMA280 Commercial Restaurant 2 x 80 W Amplifier 4ohm/8ohm/70V/100V 8 input
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | JBL |
| Form Factor | Tabletop |
| Type | Mixer Amplifier |
| Model | CSMA280 |
| UPC | 871015007373 |
| MPN | CSMA280 |
| Country/Region Of Manufacture | China |
| Power | 80 W |
JBL CSMA280 Commercial Restaurant 2 x 80 W Amplifier 4ohm/8ohm/70V/100V 8 inputs Designed for commercial and industrial use, the CSMA 280 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments. The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBL CSR-V in-wall volume controls (available separately). This Commercial Series mixer/amplifier boasts such features as voice activating ducking (useful for paging over background music), priority muting for channels one and five, and a sleep mode which automatically powers down the unit when no audible signal has been received for longer than 30 minutes. Also, with two auxiliary outputs, you may connect to an additional amplifier, though the master volume and tone controls will have no bearing on the resulting signal. Channel Modes8 inputs with 2 outputs of 80W of power.ControlsIndependent Bass and Treble controls for each output channel.Input level and output volume controls.Hi-Z SwitchThe Hi-Z switch will switch in the built-in output transformer allowing the unit to drive 70V or 100V speaker systems directly when connected to the appropriate output terminals.Phantom PowerPhantom power (27 V) can be applied to all mic inputs by turning on Phantom Power within the dip switches.VOX FunctionVoice activated ducking is available on input channel 1 and channel 5. The audio input level required to activate ducking is set using the trim pot on the rear panel. Adjusting in the counter-clockwise direction will reduce that level, while the full clockwise setting will disable the VOX function.Priority MutingChannels one and five may be used as priority channels, muting all other channels when pins 4 and 5 are shorted using a switch closure. If the amplifier has entered sleep mode due to inactivity, invoking priority will also bring the unit out of sleep and ready for transmitting an announcement.Remote Volume ControlRemote volume control can be implemented using a CSR-V controller connected via an Ethernet cable to the RJ45 connector on the back panel.Sleep ModeThis unit is designed to go into sleep mode after approximately 30 minutes operating with no signal at any of the inputs. Return of signal (-40 dBu or 7.75mVRMS) to any input will wake the unit. Also, a switch closure across the priority input pins will return the unit to normal operating mode.AUX outputAn auxiliary output that you may connect to additional amplifiers is available. The audio signal is the mix of the input channels. Note that the master volume control and tone controls will have no effect on the aux output signal. JBL CSMA-280 Specs SPECIFICATIONS AmplifierForm Factor/TypeRackmountNumber of Channels 8 Input / 2 OutputPower Rating4 Ohms / 8 Ohms:80 W Peak per Channel (1 kHz, 0.5% THD)10 W RMS per ChannelLoad Impedance / Voltage4 Ohms (Minimum)70 V (60 Ohms Minimum)100 V (120 Ohms Minimum) PerformanceFrequency Response20 Hz to 20 kHz ±2 dB (Low-Z)80 Hz to 15 kHz ±2 dB (70/100 V)Line Output: 20 Hz to 20 kHz ±1 dBInput Sensitivity Mic: 3 mVrmsLine: 775 mVrmsRCA: 300 mVrmsI/O Impedance Mic Input: 400 OhmsLine Input: 20 Kilohms (Balanced)RCA Input: 50 KilohmsOutput Level Line Output: 5 Vrms (10-Kilohm Load)Insertion Loss1 dB MaximumSNR > 90 dBTHD < 0.5% (20 Hz to 20 kHz, Main Output)0.05% (Line Output)Crosstalk -70 dB (1 kHz)Signal ProcessingEQ 2-Band ConnectivityAudio I/O 2 x Block 5-Pin Balanced Line/Mic Input6 x Block 3-Pin Balanced Line/Mic Input6 x Stereo RCA 5-Pin Unbalanced Summed-Mono Input2 x Block 3-Pin Balanced Aux OutputOther I/O2 x RJ45 Remote/VolumePhantom Power 27 VDC PowerAC Input Power 100 to 240 VAC, 50 / 60 HzAC Power Connector 1 x IEC PhysicalRackmount Size 1 RUOperating Temperature32 to 95°F / 0 to 35°CStorage Temperature -4 to 185°F / -20 to 85°COperating Humidity 0 to 95% (Non-Condensing)Dimensions 17.2 x 1.7 x 11.9" / 436.9 x 43.2 x 302.3 mmWeight 11.9 lb / 5.4 kg Packaging InfoPackage Weight 16 lbBox Dimensions (LxWxH) 20.5 x 16.3 x 5.2"
