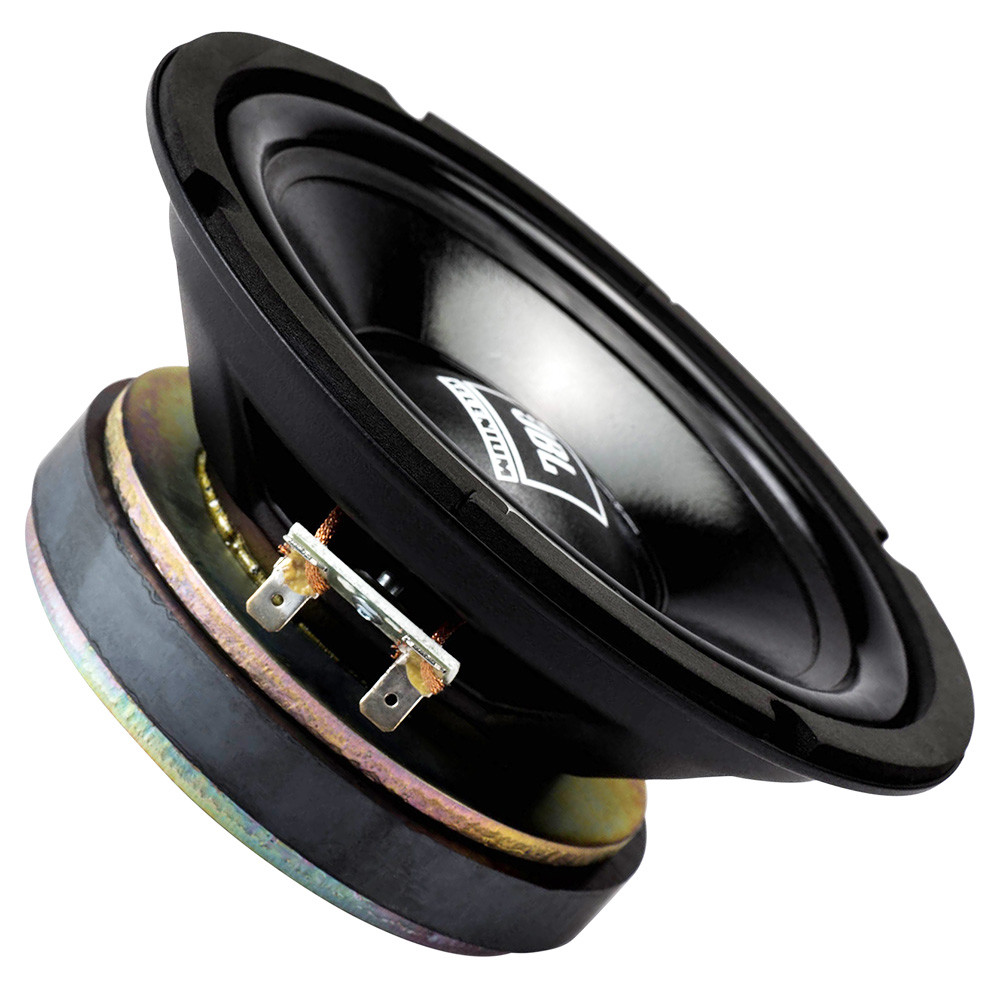

JBL Selenium 6W4P Midbass Midrange Speaker 100 Watt RMS 6″ Woofer 8-ohm
JBL Selenium 6W4P Midbass Midrange Speaker 100 Watt RMS 6″ Woofer 8-ohm
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | Brazil |
| Compatible Brand | Universal |
| Frequency Response | 80 Hz to 9,000 Hz |
| Power Handling (Max) | 200 Watts |
| Model | 6W4P |
| Suited For | Mid-Range Frequencies |
| Type | Woofer |
| Impedance | 8 ohm |
| Sensitivity | 91 dB 2.83V/1m |
| MPN | 6W4P |
| Brand | JBL |
JBL Selenium 6W4P Midbass Midrange Speaker 100 Watts RMS 6" Woofer This woofer offers excellent performance in the mid frequency range and is great for sound reinforcement in nightclubs, dancing halls, auditoriums, bands, or for use in studio monitors. Features epoxy painted reinforced steel frame, impregnated foam surround, and impregnated long fiber paper cone. PRODUCT SPECIFICATIONS Nominal Diameter : 6"Power Handling (RMS) : 100 WattsPower Handling (Max) : 200 WattsImpedance : 8 ohmsFrequency Response : 80 to 9,000 HzSensitivity : 91 dB 2.83V/1mVoice Coil Diameter : 1.25"Magnet Weight : 19.8 oz. THIELE-SMALL PARAMETERS Resonant Frequency (Fs)76 HzDC Resistance (Re)5.9 ohmsVoice Coil Inductance (Le)0.57 mHMechanical Q (Qms)6.7Electromagnetic Q (Qes)0.95Total Q (Qts)0.83Compliance Equivalent Volume (Vas)0.28 ft.³Mechanical Compliance of Suspension (Cms)0.32 mm/NBL Product (BL)6.34 TmDiaphragm Mass Inc. Airload (Mms)16.9gMaximum Linear Excursion (Xmax)2.3 mmSurface Area of Cone (Sd)238 cm² MATERIALS OF CONSTRUCTION Cone Material : PaperVoice Coil Wire Material : CopperVoice Coil Former : Kapton / PolyimideBasket / Frame Material : SteelMagnet Material : Ferrite MOUNTING INFORMATION Overall Outside Diameter : 6.54"Baffle Cutout Diameter : 5.63"Depth : 2.9"# Mounting Holes : 4 Sealed Volume : 0.46 ft.³Sealed F3 : 83 HzVented Volume : 1.16 ft.³Vented F3 : 45 Hz
