Mamba 16AES – AES/EBU DB25 Patch Bay (121 cable) Tascam & Yamaha AES/EBU pin out
Mamba 16AES – AES/EBU DB25 Patch Bay (121 cable) Tascam & Yamaha AES/EBU pin out
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Mamba |

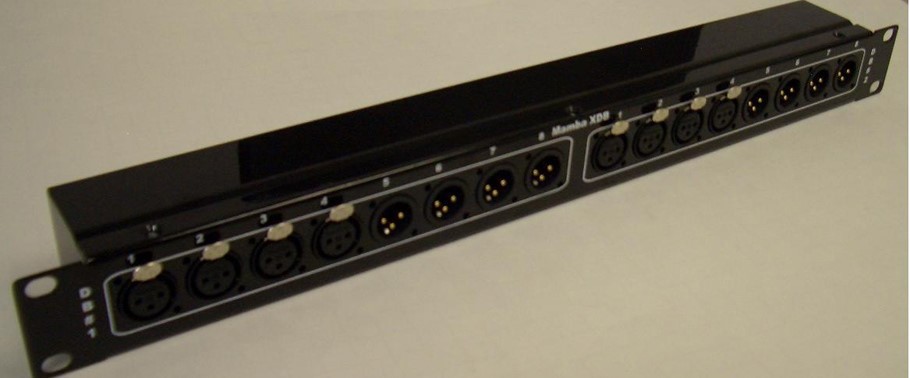

Mamba AES/EBU Patch Bay is from NetworkSound. We have many more Patch Bays XLR to XLR, XLR to DB25 etc. Pls contact NetworkSound.This AES break out is configured to use with 1-1 Dsub Male to Dsub Male cables. Pls contact us if you plan to use AES Dsub reverse cable ** Note: We can make this so you can use with 1-1 Dsub cable or AES Cross cable (Yam-Yam or Tas-Tas). Pls email or note to seller or contact seller for additional information" Features:======8 AES in (16 ch) & 8 AES out (16 ch) on 4 DB25s 2 DB25s compliant to Tascam and 2 Yamaha AES. Use one at a time or switch based on your need.4 AES in (XLR F) and 4 AES out (XLR M) per DB25Only 2" depth Enclosed box to shield any outside interference All connectors are mounted on PCB All connections are routed on board (No wires) No interference and clean AES/EBU Digital signal pass thru Compact 1U rack mount chassis & solid steel Neutrik XLR - Quality, gold plated and durable connectors Modular approach with multiple input & output options High quality & gold plated DB25 connectors AES/EBU Db25 Connectors======================Compatible with Yamaha & Tascam AES/EBU Each DB25 has 4 in and 4 out Sturdy and mounted solid on PCB Secured by pass thru chassis screw Pls use DB25 to DB25 1-1, 2-2, 3-3, ... 25-25 cable**** or AES cross cable (pls tell us what you need) Yamaha pin out: 1,14 - aes in 1/2; 2,15 - in 3/4; 3,16 - in 5/6, 4,17 - in 7/8 - XLR F 5,18 - aes out 1/2; 6,19-out 3/4; 7,20-out 5/6; 8, 2 -out 7/8 - XLR M 22,10,23,24,12,25,13 are ground - pins 9 & 11 are NC Tascam pin out: 12,24 - aes in 1/2; 10/23 - in 3/4; 9,21 - in 5/6, 7,20 - in 7/8 - XLR F 6,8 - aes out 1/2; 4,17 - out 3/4; 3,15 - out 5/6, 1,14 out 7/8 - XLR M 25, 11, 8, 22, 19, 5, 16, 2 are ground. pin 13 NC Warranty:FIVE year Limited warranty
