Mamba UDB – Custom ULN-8 DB25 Patch Bay for Metric Halo ULN or LIO
Mamba UDB – Custom ULN-8 DB25 Patch Bay for Metric Halo ULN or LIO
Specifications
| Restocking Fee | 10% |
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | ULN8 custom XLR panel |
| MPN | UDB |
| Brand | Mamba |

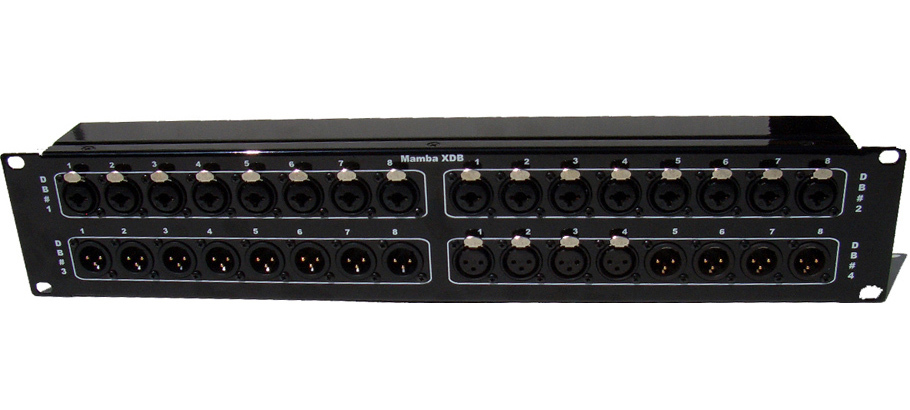

The UDB is a special DB25 patch bay that is specifically designed for Metric Halo ULN-8 . This unit has 2 Analog input DB25s (combo XLRs), one XLR Male output DB25 and one AES/EBU to DB25 (both Yamaha and Tascam AES digital pin out). The Analog to DB25s are compliant to Tascam analog pin out. The AES/EBU to DB25 supports 4 AES in and 4 AES out (8 ch in and 8 out). This unit can be connected to your ULN-8 with simple DB25-DB25 straight cables. You can also order this unit with custom analog or AES breakouts. Mamba patch bays are of highest quality to match your ULN-8. The parts, design and construction are carefully done to provide the best audio quality & durability. You can also check out 32XLR to 4 DB25 or 16XLR to 2 DB25 or XLR to XLR or LIO-8 patch bays. Mamba UDB is from NetworkSound. We have many more custom XLR, DB25 and AES patch bays, pls check NetworkSound ** Phantom Power is OK ** The AES Module is configured to support 1 to 1 DB25 to DB25 cable. If you need to support AES cross DB cable. Pls let us know. *** ****** Feedback from a customer *****Holy COW. That is about as beautiful of a breakout box as I have ever seen. No, it is *the* nicest breakout box I have ever seen. It just looks and feels like a 90's Mercedes...absolutely stunning in terms of quality, look&feel!. Thank you, Team, for taking your work so serious and doing it so well!. I'll be showing this thing to everyone who wants to see it (and those who don't) and recommend it to those in the MHLabs community and beyond. Features:====== 16 Analog inputs on Combo with 2 DB25s8 Analog outputs on XLR Male with 1 DB254 AES in/4 AES out on one DB251 DB25 pin out compliant to Yamaha digital standard1 DB25 pin out Tascam/Digidesign digital standardCompact 2U rack mount chassis & solid steelNeutrik XLR quality, gold plated and durable connectorsHigh quality DB25 connectorsMount the unit front or rear on the rackOnly 2" depthSize 19" (L) x 2"(W) x 3.5"(H)Enclosed box to shield any outside interferenceAll connectors are mounted on PCBAll connections are routed on board (No wires)Very affordable Specification:==========DB25 Analog Connectors (DB25):16 Combo (XLR/TRS) as input on 2 DB25s8 Male XLR as output on one DB25 connectorCompliant to Tascam/Fostex/Digi analog DB25 pin outSolid and mounted on PCB. Support via pass thru screws to chassisDB25 AES/EBU Connectors (DB25) 1 to 1 wiring or used with DB 1 to 1 cables - FOR CROSS wiring DB pls message us:Compatible with Yamaha AES/EBU DB25 pin outTASCAM/Digidesign AES/EBU DB25 pin outEach DB25 (set) has 4 In and 4 Out AES/EBUSturdy and mounted solid on PCBSecured by pass thru chassis screwXLR Male & Female connectorsNeutrik durable and high qualitygold plated and mounted solid on PCBSecured with 2 screws to chassisWarranty:FIVE (5) year Limited warrantyRack mountable Chassis:2U (19" L X 2" D X 3.5" H)Solid steel and professional finishWeight: 5 pounds
