Microphone Preamp for Eurorack Synthesizers– New Module
Microphone Preamp for Eurorack Synthesizers– New Module
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | United States |
| Input/Output Ports | CV Out |
| Analog/Digital | Analog |
| Type | Synthesizer module |
| MPN | CS044 |
| Brand | Circuit Slices, LLC |

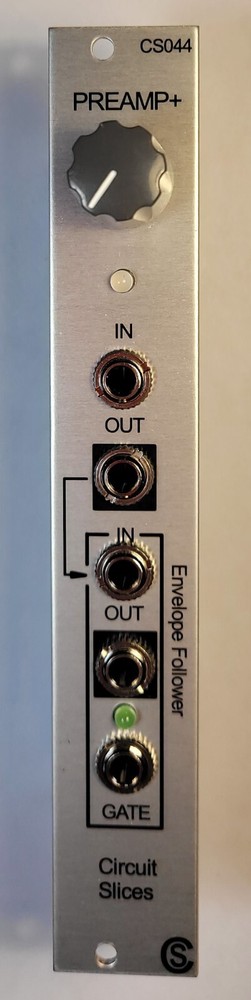

The Circuit Slices Preamp+ (model number CS044) is a dual-function module for Eurorack-compatible synthesizers. In this narrow module is a microphone preamp and an envelope follower with CV and gate outputs. Use this module to process acoustic sources or to control functions in a modular synthesizer using acoustic sound.The intended use for this module is not as a substitution for a quality lead vocal sound system, but rather to use acoustic sources for control and as signal sources in a modular synthesizer.With external acoustic-produced signals brought in to the analog synthesizer world, you can modify the signals or use the signals to control other functions in your synthesizer.Designed for use with inexpensive electrect microphones.Free shipping in the continental US Features and Specifications for the CS044 Preamp+ All analog design using state of the art ICs and surface-mount construction Microphone amplifier has a voltage gain of over 100 (+40dB) Designed to use inexpensive Electret microphones -- unbalanced / high impedance The Preamp output is “normal” patched to the envelope follower’s input The preamp and follower can be used separately – patching to the follower IN disconnects the preamp Gain control uses a panel-mounted 9mm potentiometer with a heavy-duty knob Jumper selectable pull-up resistor to power Electret microphones Dual-color LED indicates output signal level: above 2V peak (green) and above 5V peak (orange to red) Green LED above the GATE jack indicates when the GATE output is high (5V) Envelope follower tracks the input’s peak level from 0V to 5V and up to 10V Envelope follower outputs a GATE signal (5V) used to trigger envelope generators or other devices Gate threshold approximately 1.5V at follower’s input Includes power cable and case screws Reverse power protection Power: +12 VDC @ 40 mA, -12 DC @ 9 mA, using a standard Eurorack 10-pin power connection Connections: Standard 3.5mm jacks Depth: 30 mm Panel width: 4 HP Find the PDF User Manual near the bottom of the Circuit Slices homepage
