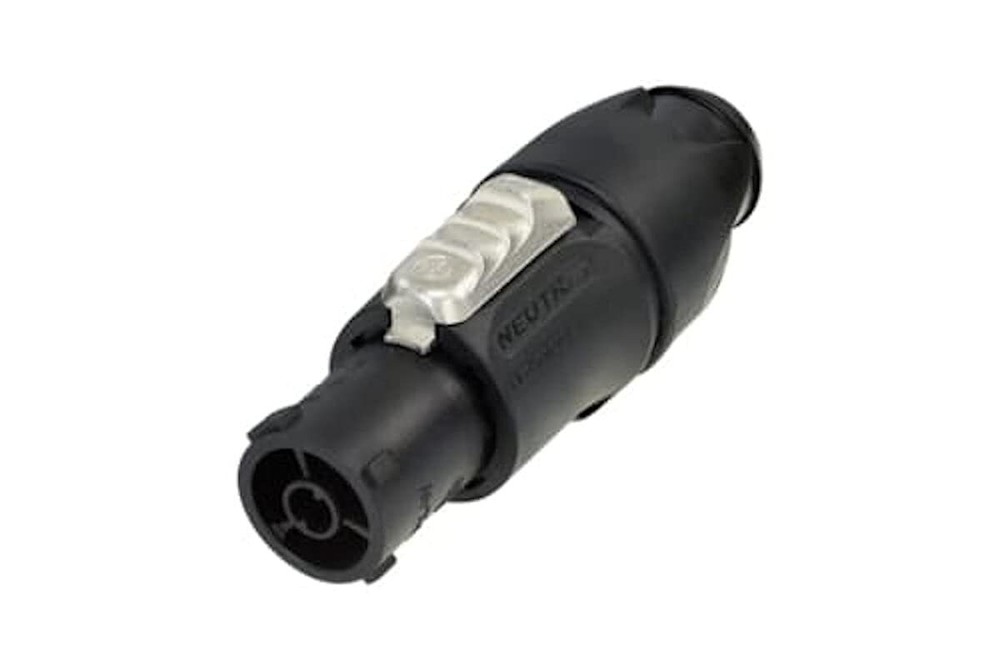

Neutrik NAC3FX-W-TOP Cable End Connector PowerCON TRUE1 TOP – Female
Neutrik NAC3FX-W-TOP Cable End Connector PowerCON TRUE1 TOP – Female
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| MPN | NAC3FX-W-TOP |
| Features | Powered |
| Color | Black |
| Brand | Neutrik |
| Type | Audio Connector/End |
The NAC3FX-W-TOP is a 16 amp Locking female cable connector with screw terminals. The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.Key FeaturesHeavy duty sealed power connector for harsch and demanding environmentOutdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)Uses high impact UV-resistant materialsTrue mains connector with breaking capacity (CBC)Lockable 16 A single phase connector (USA: 20 A)Easy and reliable twist lock systemExtremely robust and reliableUnique Neutrik cable retentionENEC certified according to IEC 60320UL498 certifiedTechnical SpecificationsContact resistance? 3 m?Dielectric strength4 kVdc / 2.8 kVacInsulation resistance> 0,1 G? (after damp heat test IEC 68-2-30)Number of electronical contacts2 + PERated current per contact16 A rms (USA: 20 A)Rated voltage250 V acCable O.D.6 – 12 mmLifetime> 5000 mating cyclesWiresize1.0 – 2.5 mmWiresize12 AWGContact plating2 m AgContactsBronze (CuSn0.2)InsertPolyamide (PA 6.6 30 % GR)Locking elementZuAl4Cu1ShellPolyamide (PA 6.6 30 % GR)Strain reliefPolyacetal (POM)FlammabilityUL 94 V-0Protection classIP65, UL50E enclosure type 4 (mated)Temperature range-30 C to +80 C
