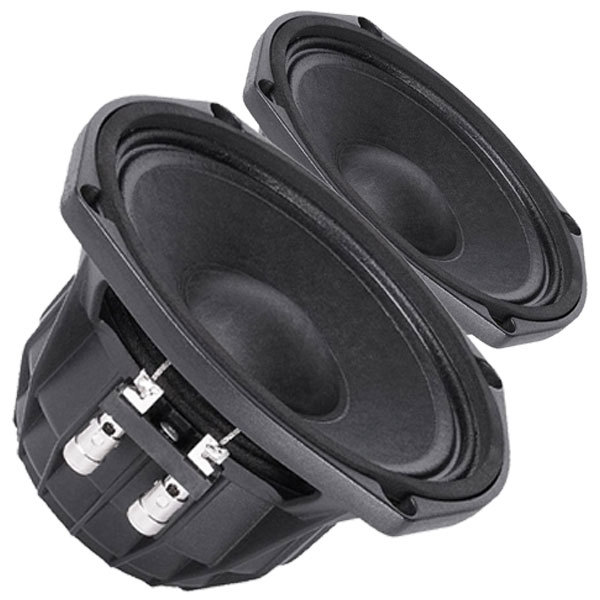

Pair Faital Pro M5N8-80 8ohm Neodymium 5″ 99dB SPL Midrange Line Array Speaker
Pair Faital Pro M5N8-80 8ohm Neodymium 5″ 99dB SPL Midrange Line Array Speaker
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Compatible Brand | Universal |
| Model | M5N8-80 |
| Nominal Impedance(Ohms) | 8ohm |
| Power Handling | 160 W |
| Type | Midrange Driver |
| Voice Coil Diameter | 1.26" |
| Magnet Composition | Neodymium |
| Max Linear Excursion | 2.75 mm |
| Part Number | 294-1142 |
| MPN | M5N8-80 |
| Brand | FAITAL PRO |
Pair Faital Pro M5N8-80 8ohm Neodymium 5" 99dB SPL Midrange Line Array Speaker SpecificationsBrandFAITAL PROModelM5N8-80Nominal Diameter5"Nominal Impedance8ohmRMS Power80 WPeak Power (Watts)160 WSensitivity (dB)99 dBMax Excursion(Xdam)(Xlim)15.2 mmMax Linear Excursion (Xmax)2.75 mmUsable Frequency Range (Hz)180-8k HzSurround ShapeM-RollBasket / Frame MaterialAluminumSpider Detail/Material1x constant height wavesVoice Coil Diameter1.26"Voice Coil FormerKaptonVoice Coil Wire MaterialAluminumVoice Coil Winding Depth7.5 mmVoice Coil Gap Height6 mmDemodulating RingNoMagnet MaterialNeodymiumParametersCompliance Equivalent Volume (Vas)0.01 Ft3Total Q (Qts)0.36Mechanical Q (Qms)1.9Electromagnetic Q (Qes)0.45Minimum Impedance (Zmin)6.5ohmDC Resistance (Re)5.5 ohmMechanical Resistance (Rms)8.82 lbs/secSurface Area of Cone (Sd)14.6 in2Voice Coil Inductance (Le)0.22Flux Density1.65 TMoving Mass Of Diaphragm (Mmd)6.3 gMoving Mass(MMs)6.8 gReference Efficiency (No)0.0183Mechanical Compliance (Cms)0.11 mm/NEBP400 HzDriver Displacement36.29 in3Mounting and Shipping InformationOverall Diameter5.51"Largest Dimension6.02"Baffle Hole Diameter5.08"Bolt Circle Diameter5.47"Flange and Gasket Thickness0.35"Depth3.16"Net Weight(lb)2.1
