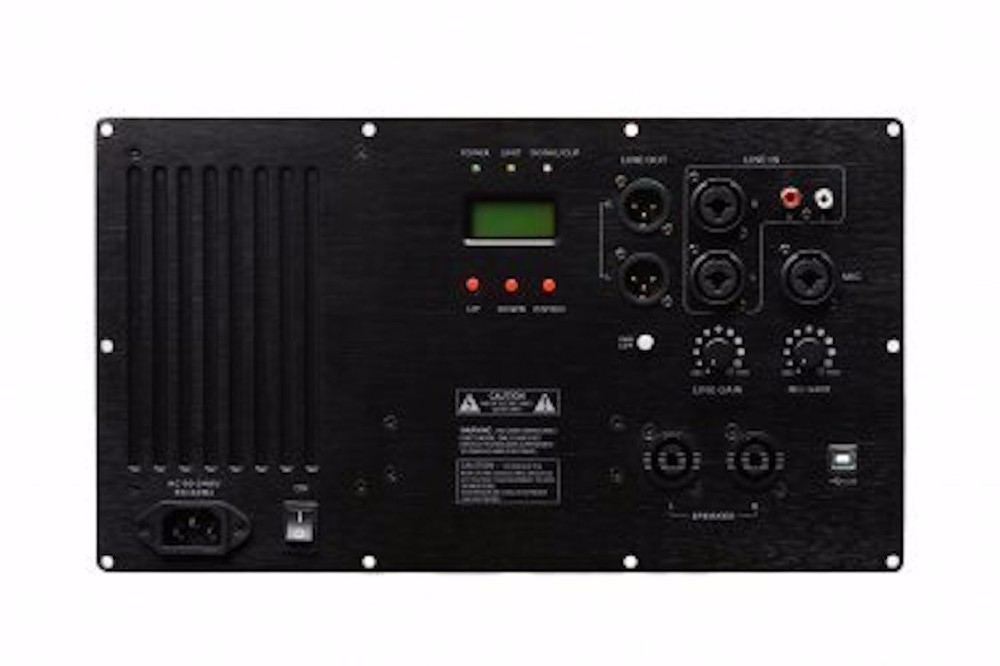

Pascal Marani PDASP2SA1 3-Channel Power Amplifier Module AUTHORIZED DEALER!!!
Pascal Marani PDASP2SA1 3-Channel Power Amplifier Module AUTHORIZED DEALER!!!
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Type | Power Amplifier |
| Brand | Marani |
| Model | PDASP2SA1 |
| MPN | PDASP2SA1 |
Pascal Marani PDASP2SA1 Outstanding Performance High power output: 500W+500W+500W Switched-Mode Power Supply with auto voltage sensing Pascal Class D Amp Module - full bandwith PWM modulator with ultra low distortion Full protection circuitry including Over-Current, Over/Under-Voltage, Output DC and Over-Temperature Excellent sonic performance with 24bit high end converters coupled with 96kHz sample rate Top-grade DSP Engine 5 band equalization on input channel selected as Hi-Shelving, Bell and Lo-Shelving Variable Q 3 band parametric equalization on Output SUB, selected as Bell 7 band parametric equalization on Output A/B, selected as Bell, Low/High Shelving variable Q Crossover filters with slopes from 6dB/Octave up to 24dB/Octave including Butterworth, Bessel, Linkwitz-Riley Output channel features a precision dynamic range controller Adjustable Delay time up to 40 ms for input and 20 ms for output. Input channel includes a Noise Gate function Output RMS Compressor Direct PC/Network Connection USB connection for system setup, monitoring and control via fully manageable remote PC software Control 16 Preset Selection Security Lockout Power & Amplifier sectionNumber of Channels3Max Output Power 4 ohms500W+500W+500W Output CircuitryPascal Class D - full bandwith PWM modulator with ultra low distortionOutput Voltage70 Vp / 140 Vpp (unload) / Bridged 140 Vp / 280 Vpp (unloaded)THD Rated power 4Ω (1kHz)<0.005%THD Rated power 8Ω (1kHz)120 dB (A-weighted, 20 Hz - 20 kHz, 8Ω load)Frequency Response20 Hz - 20 kHz ± 0,15 dB (8Ω load, 1 dB below rated power)Damping Factor>1000 (8Ω load, 1kHz and below)Power SuppliesUniversal & regulated switch mode power supplyOperating RangeUniversal Mains, 85-265VConsumption / Current draw and Thermal dissipation 230 V20W / -A / 68.2 BTU/h (Idle) ProtectionsOver-Current, Over/Under Voltage, Output DC and Over-Temperature, Short Circuit ProtectionAnalog Input1 x XLR electronically balanced, +12dBAnalog Output1 x XLR electronically balanced (Link)AD & DA ConvertersCs42528 24bitFrequency Response (DSP)20 Hz - 20 KHz; -0.5dBu at 20 Hz and 20 kHz DSP EngineMARANI M704DSP Resolution24bit (data) x 24 bit (coeff.),54bit accumulation registers, 96 bit precision on intermediate processing dataParametric Equalization5 filters on input channel, selected as Bell, Low/High-Shelving variable Q 3 filters on output SUB channel, selected as Bell 7 filters on output A/B channel, selected as Bell, Low/High-Shelving variable QFilter TypeBell, Low/High Shelving Variable QFilter GainInput from -12dBu up to +12dBu by 0.5dBu resolution steps Output from -18dBu up to +18dBu by 0.5dBu resolution stepsCenter FrequencySelectable with 1Hz resolution step from 20Hz up to 20kHzBell Filter Q/BWQ from 0.5 up to 10 by 0.1 resolution stepsLow/High Shelving Filter Q/BWQ from 0.5 up to 3 by 0.1 resolution stepsCrossover Section HPF/LPFButterworth 6/12/18/24dB per octave Bessel and Linkwitz-Riley 12/24dB per octave Filter resolution 1Hz stepsOutput RMS CompressorThreshold from -18dBu up to +12dBu Knee: 0~100%; Ratio: 2:1~100:1 Release time from 40ms up to 1000ms; Attack time from 5ms up to 100ms tput A/B channel, selected as Bell, Low/High-Shelving variable QOutput RoutingIn1, In 2, In 1+2Delayup to 40ms for ea ch input, and up to 20ms for each output, with step of 10.4usDSP & ProcessingGeneralUser Preset16Front PanelGAIN pot. -30dBu ~ 0dBu PRESET EQ Rotary encoder switch Green LED (Power); Yellow LED (Limit); Blue LED (Signal presence) 2 x XLR female connector (Input) 2 x XLR male connector (Link Output) 1 x XLR (MIC Input) USB Connection 2 x Neutrik® Speakon NL4 (Speaker) 2 x 8 LCD 2 x RCA (Line Input) 1 x Ground-lift toggle Switch Line Gain Controller MIC Gain Controller 2 x Locking PowerCON® 20A: AC Mains (blue) - AC Link (white) On/Off Power SwitchDimensions13.78" x 3.15" x 7.88" (350 x 80 x 200 mm)Weight, Net / Shipping6.09 lbs (2.76 Kg) / 8.83 lbs (4 Kg) ASK any questions before you buy!We have distributed PRO AUDIO SPEAKERS and Amplifiers for 20 years. Go to SpeakersAndAmps dotcom to see!We have all the other major PRO Audio Speaker Brands and Models.We have many many more than you see here. We sell to Dealers as well.
