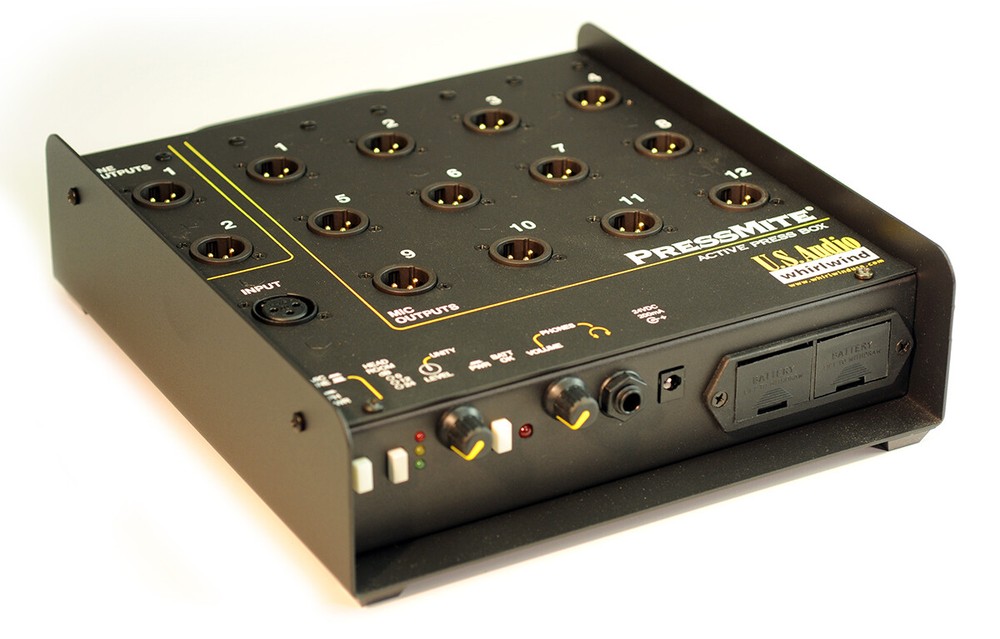

Whirlwind PRESSMITE Active Pressbox Distributor 12 Mic and 2 Line Level Channels
Whirlwind PRESSMITE Active Pressbox Distributor 12 Mic and 2 Line Level Channels
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Whirlwind |
| MPN | PRESSMITE |
| Type | Cables and Connectors |
This compact, active press feed distribution box distributes 12 high-quality mic level signals and 2 line level signals with a high degree of isolation between outputs. It provides a 60dB gain adjustment for one mic or line input. The PressMite also features a built-in headphone amp. Two alkaline 9V batteries provide power for typically more than 8 hours of continuous operation, monitored by a Battery OK LED. The batteries are easily replaced via side-mount trays. A 120VAC/24VDC power adapter (model PS24) is included. In MIC input mode, 18V phantom power is selectable and a three segment LED headroom display speeds level adjustment. If more outputs are needed, PB Series Press Boxes can be connected to the line outputs to provide up to 48 additional mic outputs. The PressMite's box is built to withstand the abuse of public events.SpecificationsFrequency Response: 100 Hz-6 kHz ±0.3 dB, 15 Hz-20 kHz ±3 dBInput Impedance: Microphone: 1.5 kOhms; Line: 40 kOhmsMax Impedance Level: Microphone: -14 dBu; Line: +30 dBuOutput Impedance: Microphone: -17 dBu; Line: +12 dBuTotal Harmonic Distortion: 0.063% at 1 kHz (Unity Gain)Rise Time: 26 µSPhase Shift: -0.8° at 1 kHz (Unity Gain)Intermodulation Distortion: 0.08% (Unity Gain, Mic Mode)CMR at 60 Hz: Mic: 75 dB; Line: 60 dBIsolationMic Outputs: 65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairsLine Outputs: Greater than 77 dBPower requirements: (2) 9V Alkaline Batteries or 24 Volt External DC (120 VAC / 24 VDC Power Adapter Included)
