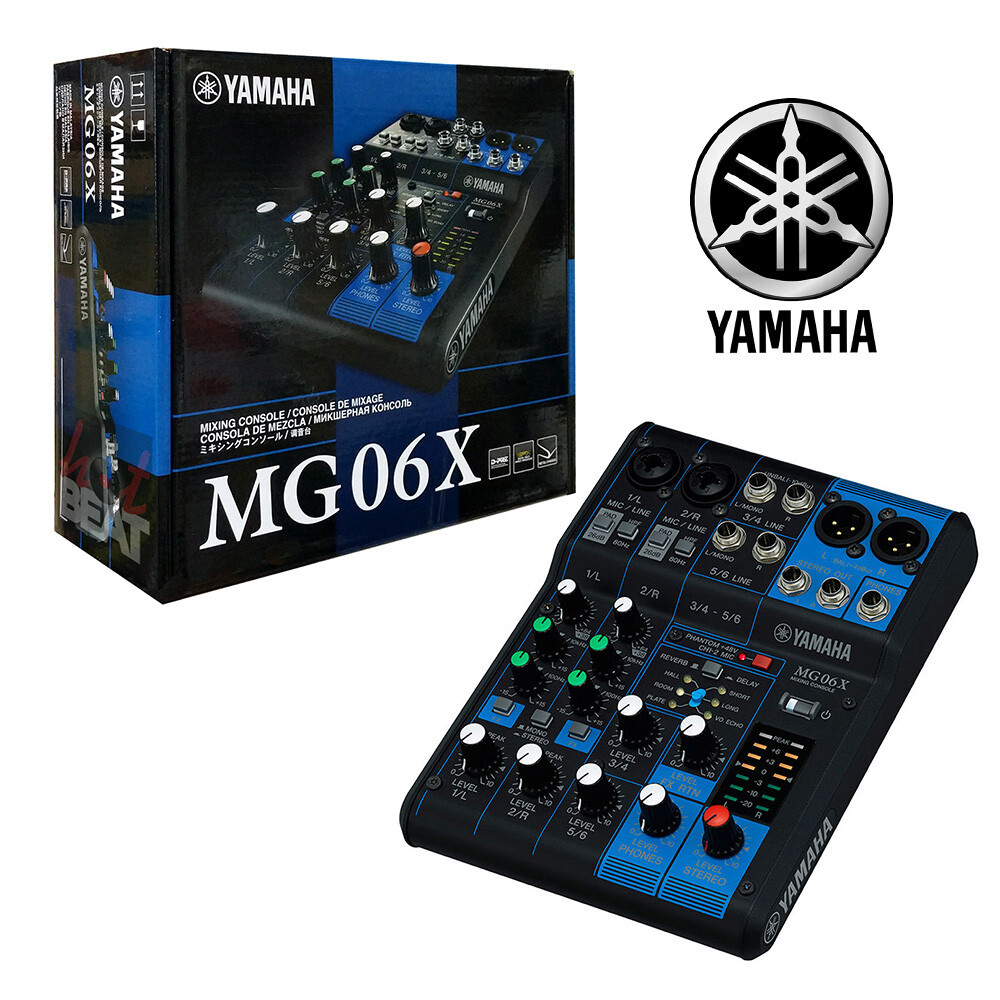

Yamaha MG06X 6-Channel Compact Audio Mixer with Built In Effects
Yamaha MG06X 6-Channel Compact Audio Mixer with Built In Effects
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | MG06X |
| Suitable For | Recording & Live Sound |
| Item Height | 2.40in |
| Item Width | 5.90in |
| Brand | Yamaha |
| Input/Output Ports | Analog In |
| Form Factor | Console/Tabletop |
| Features | Phantom Power |
| Type | Mixing Console |
| Model | MG06X |
| Item Weight | 1.98lbs |
Yamaha MG06X 6-Channel Compact Audio Mixer with Built In Effects The MG06X from Yamaha is a compact six-input mixer with built-in effects for small performances, lectures, recordings and similar applications. The mixer features two mic/line combo inputs with D-PRE mic preamps as well as four 1/4" line inputs with stereo level controls. Each of the two mic/line inputs is equipped with a 2-band EQ and a high pass filter at 80Hz. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. They also each feature 26dB attenuation switches for recording loud sound sources such as guitar amplifiers. The MG06X mixer has stereo XLR outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as TRS 1/4" stereo outs for sending to powered speakers, amplifiers or devices such as digital recorders. The mixer's built-in effects can be engaged on the two mic/line combo inputs and they feature reverb and delay. Providing three reverb and three delay settings plus a dedicated FX return level control, these effects can be used to help vocals and instruments sit better in your mix. Mono/stereo switch allows channels 1/2 to be used with two mono sources or one stereo sourceMetal chassis designed to withstand wear and tearOptional BMS10A microphone stand adapter (sold separately) allows mounting Product Specifications Built-in Effects SPX algorithm: 6 programs (3 reverb, 3 delay)Phantom Power +48 V switchable, channels 1, 2Input Channels 2x mono [mic/line]2x stereo [line]Output Channels 2x stereo out1x headphoneBus1x stereoPad26 dB (mono channels)HPF 80 Hz, 12 dB/oct (mono channels)Equalizer EQ high (mono channels) gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ low (mono channels) gain: +15 dB/-15 dB, Frequency: 100 Hz shelvingLEDPeak LED turns on when post EQ signal reaches 3 dB below clippingLevel Metering 2 x 7-segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]Total Harmonic Distortion 0.01% @ +8 dBu (20 Hz to 20 kHz), GAIN knob: min, 0.003% @ +18 dBu (1 kHz), GAIN knob: minFrequency Response +0.5 dB/-0.5 dB (20 Hz to 20 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: minEquivalent Input Noise -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max)Residual Output Noise -102 dBu (STEREO OUT, STEREO LEVEL knob: min)Crosstalk -88 dBPower Requirement PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, cable length = 1.5 m), 100-240 V, 50/60 Hz or equivalent recommended by YamahaPower Consumption 12 WDimensions 5.9 x 2.4 x 7.9" (149 x 62 x 202 mm)Net Weight 1.98 lb (0.9 kg) Packaging Info Package Weight 3.27 lbBox Dimensions (LxWxH) 10.7 x 9.75 x 4.75"
