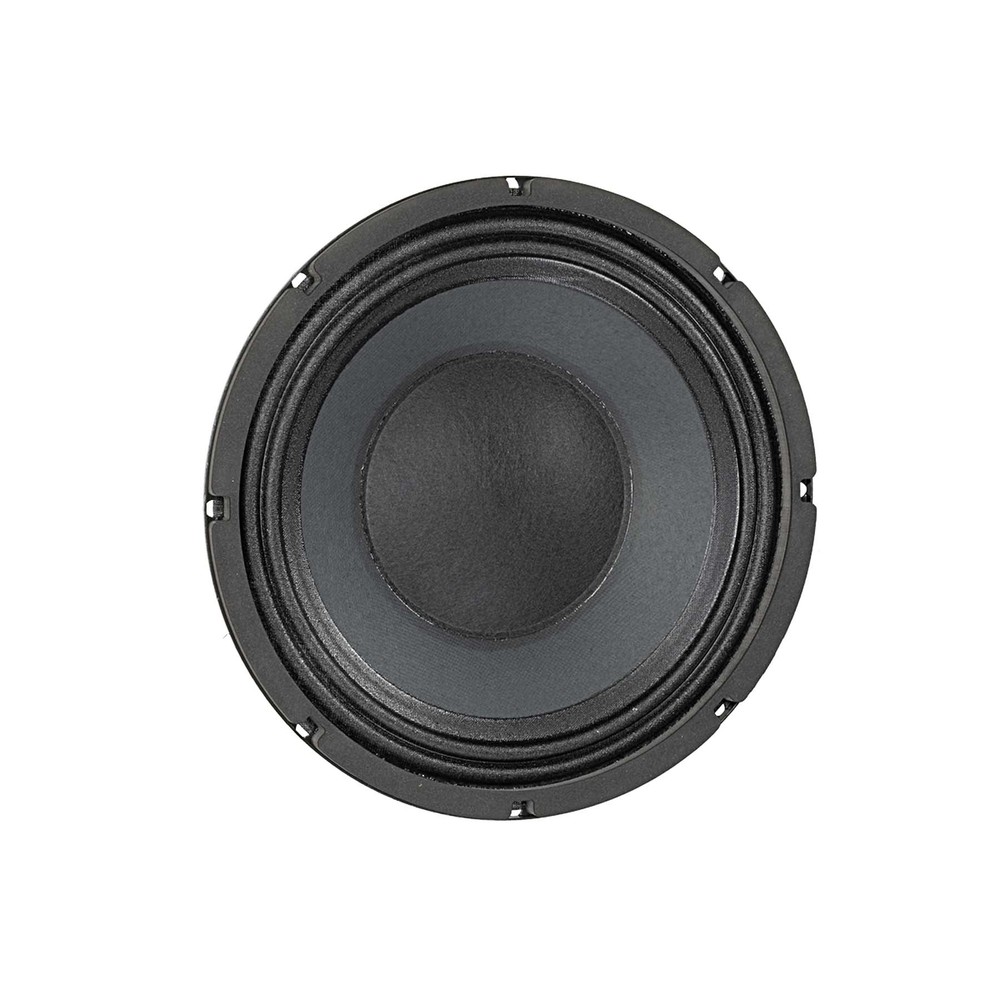

Eminence BASSLITE S2010 10″ 8ohm Pro Audio Bass Guitar Speaker 300W 2 in VC
Eminence BASSLITE S2010 10″ 8ohm Pro Audio Bass Guitar Speaker 300W 2 in VC
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Unit Type | Unit |
| Compatible Brand | Universal |
| Type | Woofer |
| MPN | BASSLITE S2010 |
| Brand | Eminence |
| Power RMS (Watts) | 150 |
| Power Max (Watts) | 300 |
| Frequency Range | 54Hz - 3Khz |
| Sensitivity (dB) | 96.2 |
| Gap Height (mm) | 7.1 |
| DC Resistance (Re) | 5.02 |
| Coil Inductance (Le) MH | 0.47 |
| Mechanical Q (Qms) | 4.16 |
| Electromagnetic Q (Qes) | 0.34 |
| Total Q (Qts) | 0.31 |
| Compliance Equivalent Volume (Vas) Ltr | 63.4 |
| Compliance Equivalent Volume (Vas) Cuft | 2.24 |
| Peak Diaphragm Displacement Volume (Vd) | 140 |
| Mechanical Compliance Of Suspension (Cms) Mm/N | 0.36 |
| BL Product (BL) T-M | 11.9 |
| Efficiency Bandwidth Product (EBP) | 135 |
| Surface Area Of Cone (Sd) Cm2 | 350.1 |
| Driver Volume Displaced (liters) | 0.84 |
| Overall Diameter (in) | 10.08 |
| Baffle Hole Diameter (in) | 9.18 |
| Screw Holes Diameter (in) | 0.25 |
| Mounting Hole Centers Across (in) | 9.66 |
| Depth (in) | 4.25 |
| Net Weight (lbs) | 3.5 |
| Ship Weight (lbs) | 4.6 |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Material | Neodymium magnet |
| Basket Material | Pressed steel basket |
| Cone Composition | Paper cone |
Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X10 enclosures. SPECIFICATIONNominal Basket Diameter10", 254 mmNominal Impedance*8 ΩPower Rating*Program Power300 WWatts150 WResonance46 HzUsable Frequency Range54 Hz - 3 kHzSensitivity*96.2 dBMagnet Weight4 oz.Gap Height0.28", 7.1 mmVoice Coil Diameter2", 51 mmTHIELE & SMALL PARAMETERSResonant Frequency (fs)46 HzDC Resistance (Re)5.02 ΩCoil Inductance (Le)0.47m HMechanical Q (Qms)4.16Electromagnetic Q (Qes)0.34Total Q (Qts)0.31Compliance Equivalent Volume (Vas)63.4 liters / 2.24 cu.ft.Peak Diaphragm Displacement Volume (Vd)140 ccMechanical Compliance of Suspension (Cms)0.36 mm/NBL Product (BL)11.9 T-MDiaphragm Mass Inc. Airload (MMs)33 gramsEfficiency Bandwidth Product (EBP)135Maximum Linear Excursion (Xmax)4 mmSurface Area of Cone (Sd)350.1 cm2Maximum Mechanical Limit (Xlim)8 mmMOUNTING INFORMATIONRecommended Enclosure VolumeSealedN/aVentedAcceptableDriver Volume Displaced0.03 cu.ft. / 0.84 litersOverall Diameter10.08", 256 mmBaffle Hole Diameter9.18", 233.2 mmFront Sealing GasketYesRear Sealing GasketYesMounting Holes Diameter0.25", 6.4mmMounting Holes B.C.D.9.66", 245.4mmDepth4.25", 108 mmNet Weight3.5 lbs, 1.59 kgShipping Weight4.6 lbs, 2.09 kgsMATERIALS OF CONSTRUCTIONCoil ConstructionCopper voice coilCoil FormerPolyimide formerMagnet CompositionNeodymium magnetCore DetailsNon-vented core Basket MaterialsPressed steel basketCone CompositionPaper coneCone Edge CompositionCloth cone edgeDust Cap CompositionSolid composition felt dust cap
