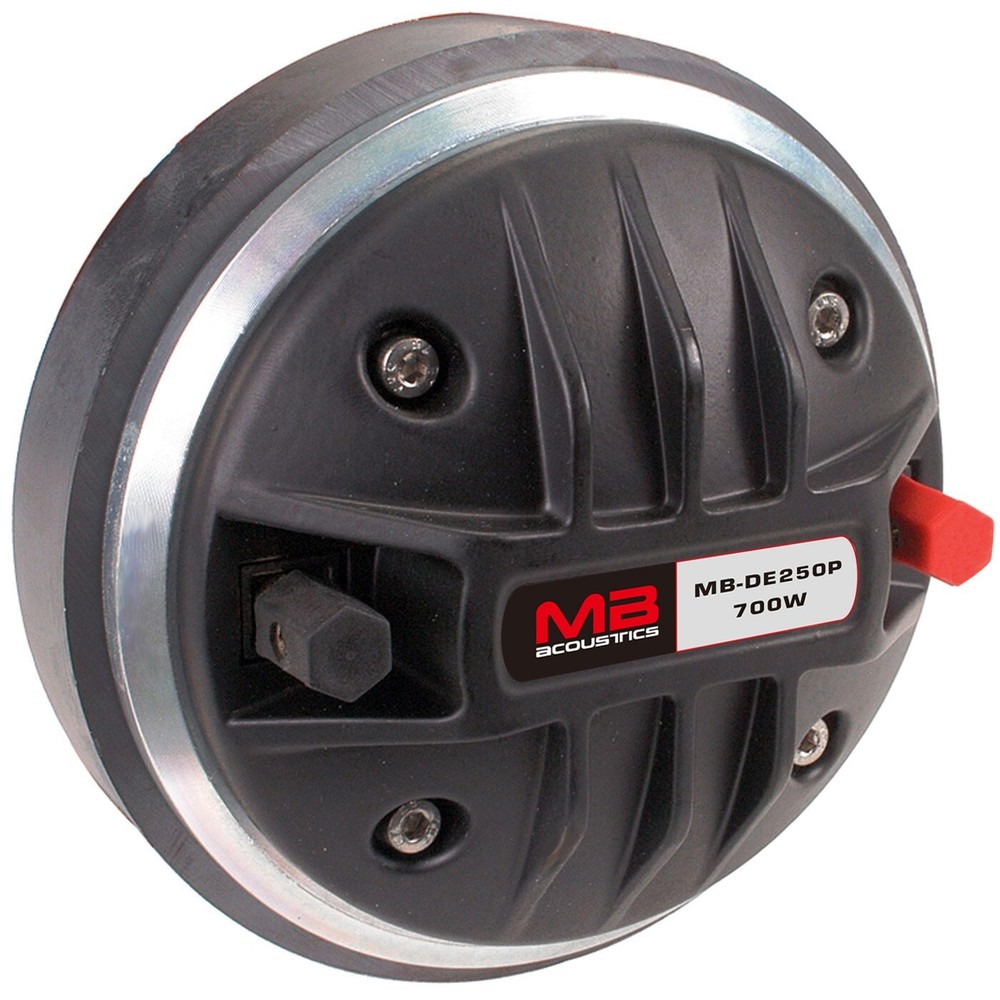

MB Acoustics Polyimide Compression Driver 1.75″ VC 8Ω 700W 2/3-Bolt-On DE250P
MB Acoustics Polyimide Compression Driver 1.75″ VC 8Ω 700W 2/3-Bolt-On DE250P
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Compatible Brand | B&C |
| Voice Coil | Flat Ribbon (CCAR) |
| Size | 1.75” |
| Compatible Model | DE250-8 |
| Year Manufactured | 2022 |
| MPN | MB-DE250P |
| Voice Coil Size | 1.75" |
| Watts Max | 700 W |
| Brand | MB Acoustics |
| Type | Horn/Compression Driver |
| Unit Type | Unit |
| Former | Kapton |
| Model | MB-DE250P |
| Diaphragm | Polyimide |
YOU ARE BUYING 1 DRIVER The MB Acoustics MB-DE250P is an improved 1" throat High Frequency Compression Driver with a Polyimide Diaphragm, Flat Wire (CCAR) on a Heat Resistant Kapton (KSV) Former, matched to a powerful 22oz magnet to achieve maximum SPL on a small frame with a 2/3 Bolt-On configuration + Screw-On Adapter included. SPECIFICATIONS:Bolt-On + Screw-On Polyimide 1" Compression DriversVoice Coil Diameter: 1.75"Voice Coil Diaphragm Dome: PolyimideVoice Coil Wire: Flat Ribbon (CCAR)Voice Coil Former: Kapton (KSV)Magnet Weight: 22oz.Die-cast Aluminum HousingFrequency Response: 1kHz - 18kHzSensitivity: 108.5dB @ 1W/1mNominal Impedance: 8 ohmsThroat Diameter: 1”Watts: 700Wmax / 135W Continuous Program PowerRecommended Crossover: 1.6 kHzMounting: Bolt-On 2/3 configuration + Screw-On Adapter included (See photos)Dimensions: 4.5" diameter x 2.125" depth (114mm x 54mm)Net Weight: 3.3 LBSOriginal Replacement Diaphragm available, model MB-DE250P-VC (Sold separately)
